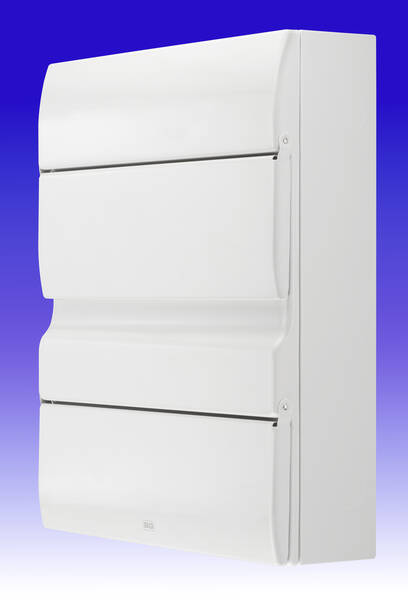

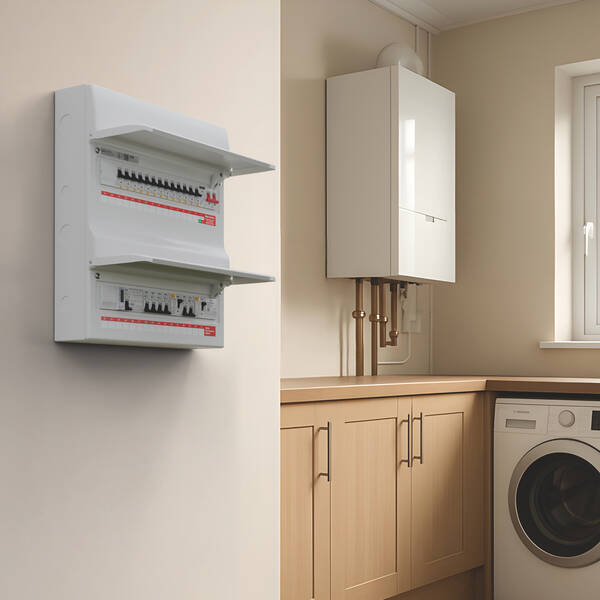

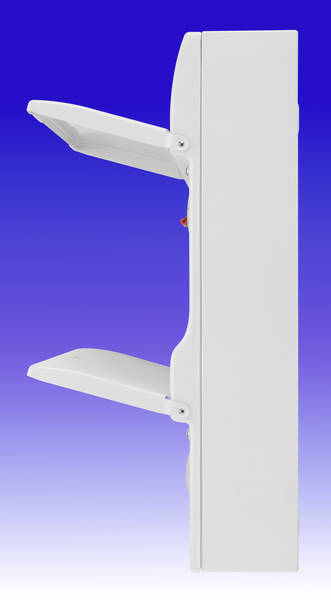

31 Way Metal Consumer Unit (2 Tier) c/w 100A Main Switch + SPD
Product Code: BG F236MS31
CF236MS31-01
Loading …
Width: 387mm
Height: 483mm
Projection: 117mm
BG
31 Way Metal Consumer Unit (2 Tier)
c/w 100A Main Switch + SPD (Surge Protection Device)
31 Way Metal Consumer Unit (2 Tier)
c/w 100A Main Switch + SPD (Surge Protection Device)
This range of 2 tier consumer units offer a flexible solution for the 18th Edition Wiring Regulations BS7671, giving maximum circuit flexibilty for larger houses and the versatility of making it into dual tarrif or standard and renewable units.

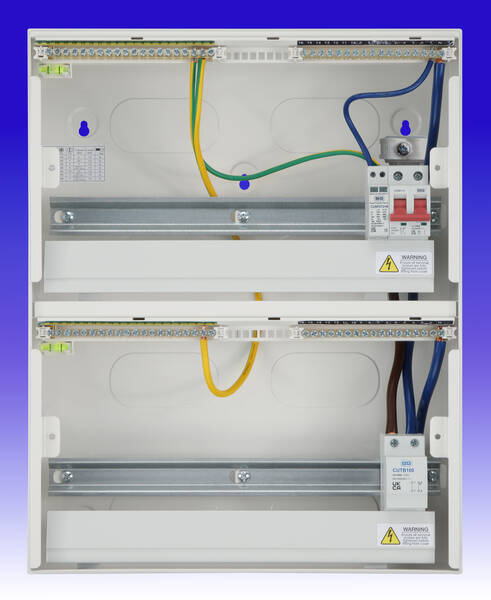

Available in either 31 or 43 useable ways and supplied with 100A main switch, 100A connector block, T2 SPD, integrated spirit level, and all internal cables, terminals, busbar, labels and blanks. MCB, RCBO, RCD, AFDD, and control devices can be fitted into the consumer unit, depending on the circuit requirements.
Available in either 31 or 43 useable ways and supplied with 100A main switch, 100A connector block, T2 SPD, integrated spirit level, and all internal cables, terminals, busbar, labels and blanks. MCB, RCBO, RCD, AFDD, and control devices can be fitted into the consumer unit, depending on the circuit requirements.
- 100A main switch (fitted)
- 100A 2 pole connector block (fitted)
- Type 2 SPD - 1 module (pre-wired)
- Integrated spirit level

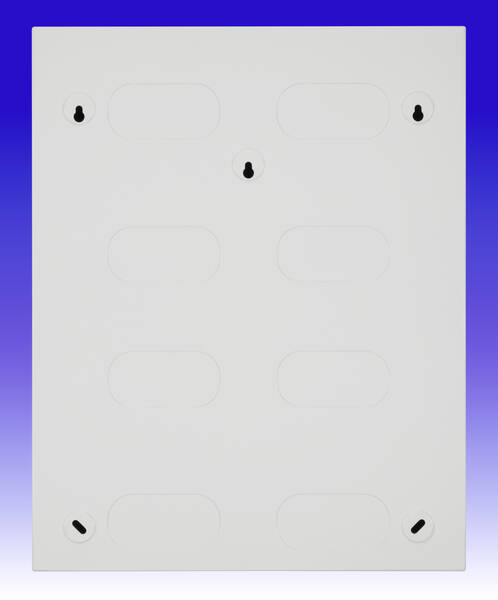

- Large rear knockouts (4 rows)
- Optional cable clamp included
- Multiple knockouts in sides, top and base, up to 40mm
- Backed out and retained terminal screws
- Rear clip in cable protector
- Grommet strip supplied cut to length for rear knockouts
- 10 year warranty
Width: 387mm
Height: 483mm
Projection: 117mm
Technical:Datasheet - 600kb pdf Flyer - 310kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
BG F236MS31
31 Way Metal Consumer Unit (2 Tier) c/w 100A Main Switch + SPD |
BG 30mA RCBO - BG - Type A - B Curve (compact)
Loading …
Type AC – Ensures tripping for residual AC currents
Type A – Ensures tripping for residual AC currents and pulsating DC currents.
See product for Alternative Product
BG
30mA RCBO - Type A
B Curve (New Compact)
30mA RCBO - Type A
B Curve (New Compact)
New Compact RCBO's for BG Consumer Units
Single module 30mA sensitivity combined MCB/RCD.
New compact size RCBO allowing for maximum usage of cable space within the Consumer Unit and easy installation.
Single module 30mA sensitivity combined MCB/RCD.
New compact size RCBO allowing for maximum usage of cable space within the Consumer Unit and easy installation.
- Single module RCBOs will occupy one outgoing way.
- Positive contact indication status.
- Device capable of being locked in the 'ON' or 'OFF' Position.
- Manufactured and tested to EN/IEC 61009-1 standards.
-
An RCBO is a combination of an MCB and RCD
This enables both overcurrent protection and earth fault current protection by a single unit. - MCB with type ‘B’ characteristics.
Type AC – Ensures tripping for residual AC currents
Type A – Ensures tripping for residual AC currents and pulsating DC currents.
| See product for Alternative Product |
Technical:Datasheet - 130kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
6A 30mA RCBO - BG (Type A) B Curve (compact) --- Price Drop --- |
|
10A 30mA RCBO - BG (Type A) B Curve (compact) --- Price Drop --- |
|
16A 30mA RCBO - BG (Type A) B Curve (compact) --- Price Drop --- |
|
20A 30mA RCBO - BG (Type A) B Curve (compact) --- Price Drop --- |
|
32A 30mA RCBO - BG (Type A) B Curve (compact) --- Price Drop --- |
|
40A 30mA RCBO - BG (Type A) B Curve (compact) --- Price Drop --- |
|
BG 30mA RCBO - BG - Type A - C Curve (compact)
Loading …
Type AC – Ensures tripping for residual AC currents
Type A – Ensures tripping for residual AC currents and pulsating DC currents.
See product for Alternative Product
BG
30mA RCBO - Type A
C Curve (New Compact)
30mA RCBO - Type A
C Curve (New Compact)
New Compact RCBO's for BG Consumer Units
Single module 30mA sensitivity combined MCB/RCD.
New compact size RCBO allowing for maximum usage of cable space within the Consumer Unit and easy installation.
Single module 30mA sensitivity combined MCB/RCD.
New compact size RCBO allowing for maximum usage of cable space within the Consumer Unit and easy installation.
- Single module RCBOs will occupy one outgoing way.
- Positive contact indication status.
- Device capable of being locked in the 'ON' or 'OFF' Position.
- Manufactured and tested to EN/IEC 61009-1 standards.
-
An RCBO is a combination of an MCB and RCD
This enables both overcurrent protection and earth fault current protection by a single unit. - MCB with type ‘B’ characteristics.
Type AC – Ensures tripping for residual AC currents
Type A – Ensures tripping for residual AC currents and pulsating DC currents.
| See product for Alternative Product |
Technical:Datasheet - 130kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
BG - DP AFDD Type A - 6KA
Loading …
BG AFDB6A
BG
30mA DP AFDD / RCBO
B Curve - Type A
30mA DP AFDD / RCBO
B Curve - Type A
AFDD + RCBO combined:
AFDDs will all have automatic test, RCCB included + test button, includes overcurrent and fault current protection.
What buildings will be compulsory.: final socket circuits not exceeding 32A
Higher Risk Residential Buildings (HRRB): over 18M high or 6 stories what ever comes 1st
Houses in Multiple Occupation (HMO)
Purpose built student accommodation
Care homes
AFDDs will all have automatic test, RCCB included + test button, includes overcurrent and fault current protection.
What buildings will be compulsory.: final socket circuits not exceeding 32A
Higher Risk Residential Buildings (HRRB): over 18M high or 6 stories what ever comes 1st
Houses in Multiple Occupation (HMO)
Purpose built student accommodation
Care homes
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
BG - Bell Transformer 240V AC to 8V 12V & 24V AC
Loading …
BG CUB1
Height: 80mm
Width: 68mm
Depth: 35mm
BG
Bell Transformer 240V AC to 8V 12V & 24V AC
Bell Transformer 240V AC to 8V 12V & 24V AC
Bell Transformer for use with metal or insulated consumer units & enclosures - DIN rail mountable.
Steps down voltage from 240V AC to 8V, 12V & 24V AC.
For installation in a high integrity circuit.
Used with mains powered door bells.
DIN rail mounted, suitable for cable size 16mm.
Steps down voltage from 240V AC to 8V, 12V & 24V AC.
For installation in a high integrity circuit.
Used with mains powered door bells.
DIN rail mounted, suitable for cable size 16mm.
Height: 80mm
Width: 68mm
Depth: 35mm
Technical:CUB1-01 Specification pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Sprint Cable Entry Glands - for all twin and earth cables
Loading …
Sprint Cable Entry Glands
offer full protection for all twin and earth cables
Complies with 18th Edition Wiring Regulations BS7671 for metal consumer units.
Technical:Data Sheet 190kb PDF |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
SPRINT Cable Glands for Tails and Earth Cables
Loading …
See product for Accessories
SPRINT Cable Glands
for Tails and Earth Cables
for Tails and Earth Cables
offer full protection for tails and earth cables
Complies with 18th Edition Wiring Regulations BS7671 for metal consumer units.
| See product for Accessories |
Technical:Data Sheet 190kb PDF WKTKEP50 Datasheet pdf Datasheet - 690kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
SPRINT Brass Cable Glands for Tails and Earth Cables
Loading …
See product for Accessories
SPRINT Brass Cable Glands
for Tails and Earth Cables
for Tails and Earth Cables
offer full protection for tails and earth cables
Complies with 18th Edition Wiring Regulations BS7671 for metal consumer units.
| See product for Accessories |
Technical:Data Sheet 190kb PDF |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
32mm Tail Kit Brass - 2 x 16mm Tail & 1 x 16mm Earth Cables --- Price Drop --- |
|
Wiska - Sprint - Flame Retardant Grommets
Loading …
SPRINT
Flame Retardant Grommets
Flame Retardant Grommets
Complies with 18th Edition Wiring Regulations BS7671 for metal consumer units.
Made from Flame Retardant Material
Technical:WKEMTF32 Datasheet - 170kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Digital DIN Rail Mounting Compact Timers
Loading …
SM NTDR16C
GK T80C
FB TD1
Digital DIN Rail Mounting Compact Timers
16A Resistive
16A Resistive
For use in control panels, distribution boards and consumer units.
24hr/7 day programming.
Voltage free contacts.
24hr/7 day programming.
Voltage free contacts.
- See each product
Technical:See each product |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Flexi Meter Tail Packs
Loading …
See product for Accessories
Flexi Meter Tail Packs
25mm 6181Y Brown & Blue (19 Strands)
16mm 6491X Green Yellow
25mm 6181Y Brown & Blue (19 Strands)
16mm 6491X Green Yellow
| See product for Accessories |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
100mm x 100mm Maxi Trunking c/w End Caps - 1Mtr length
Loading …
Supplied with 2 End Caps
100mm x 100mm PVC Trunking c/w End Caps
1Mtr length
1Mtr length
Designed for use with consumer unit and distribution board Installations
|
