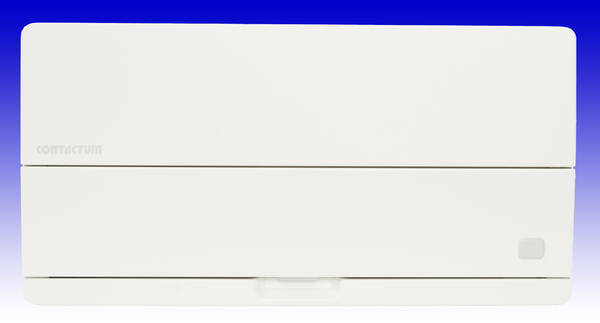

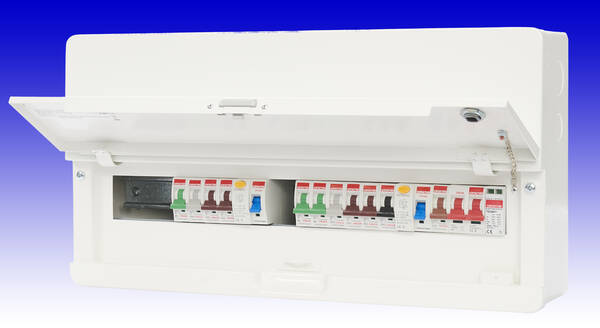

16 Way 100A Dual Split Consumer Unit c/w 2 RCDs (Type A) + SPD + 10 MCBs --- Price Drop ---
Product Code: CP SDDS16111ASPMS-P01
5056199089536
SDDS16111ASPMS-P01
Loading …
Width: 515mm.
Height: 262mm.
Depth: 114mm.
Watch Video
Contactum - Defender2
16 Way 100A Dual Split Consumer Unit c/w 2 RCDs (Type A) + SPD + 10 MCBs
(MCBs 40A x 1, 32A x 4, 16A x 2, 6A x 3)
16 Way 100A Dual Split Consumer Unit c/w 2 RCDs (Type A) + SPD + 10 MCBs
(MCBs 40A x 1, 32A x 4, 16A x 2, 6A x 3)
Contactum – Defender2.0 NEW Generation of Consumer Units
Surface Mounted - Flexible High Integrity Split Load Dual RCD Consumer Units + Type 2 SPD
10-16 Outgoing ways on Single Row
Surface Mounted - Flexible High Integrity Split Load Dual RCD Consumer Units + Type 2 SPD
10-16 Outgoing ways on Single Row
- Compliant with BS7671 18th Edition Wiring Regulations
- Tested in accordance with BS EN 61439-3 including Annex ZB
- Up to 100A (InA) Rated
- 40kA Type 2 Surge Protection Device fitted – Suitable for all earthing arrangements
- Type A RCCBs
- High Integrity configuration for maximum installation flexibility
- Enhanced Design - Offering superior aesthetics for modern living applications where the consumer unit is on show
- Meter Tails Retention Clamp - The first line of defence against loose connections on the full load terminations at the main switch
- Unique latching hinged door - Lid can be latched open for convenience during installation tests and circuit identification
- High quality bubble level - For added installation guidance
- Edge protection grommet strip - For a compliant and professional finish on your rear cable entry knockouts
- Snappable copper busbar with easy secure clip-in busbar cover – For faster installation
- Main Earth terminal accepts 25mm2
Width: 515mm.
Height: 262mm.
Depth: 114mm.
Watch Video
| Previous Price: £182.65 Please Allow 2 / 3 Days for Stock transfer |
Technical:CPSDDS16111ASPMSP01 Datasheet Defender2 Range - 1.8Mb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
CP SDDS16111ASPMS-P01
16 Way 100A Dual Split Consumer Unit c/w 2 RCDs (Type A) + SPD + 10 MCBs --- Price Drop --- |
Contactum - NEW "CP" Range - 6kA Type B SP MCB
Loading …
CP B0606B
CP B0610B
CP B0616B
CP B0620B
CP B0632B
CP B0640B
CP B0650B
CP B0663B
Width: 17mm
Height: 84mm
Depth: 73mm
Contactum NEW "CP" Range
6kA Type B SP MCB
6kA Type B SP MCB
Replaces CPB MCBs
- Rated voltage: 220-250V
- Breaking capacity: 6kA
- B Curve
- Single pole
- Colour coded dolly switch to allow quick
visual identification of ratings - Conforms to BS EN 60898
Width: 17mm
Height: 84mm
Depth: 73mm
- See each product
Technical:See each product |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Contactum MCBs ( Type C ) - 10KA
Loading …
Contactum
MCBs ( Type C ) - 10KA
MCBs ( Type C ) - 10KA
Contactum MCB's detect overcurrents due to both overload and fault currents.
The MCB will operate and interrupt the supply to prevent damage to the installation.
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Contactum - 6KA Type A B Curve SP Compact RCBO's
Loading …
CP CBR0606AB
Contactum
6KA Type A SP Compact RCBO's
B Curve
6KA Type A SP Compact RCBO's
B Curve
Type A as standard, Faster installation time, Faster testing time and Compact in size. Available in B or C tripping curve, 6kA & 10kA breaking capacities from 6-50A making it one of the most comprehensive ranges on the market today.
The removal of the functional earth reduces the number of connections on the installation as well as removing the need to remove the functional earth whilst carrying insulation resistance testing. This clear improvement on installation time, without compromising the quality or safety of this product range.
The removal of the functional earth reduces the number of connections on the installation as well as removing the need to remove the functional earth whilst carrying insulation resistance testing. This clear improvement on installation time, without compromising the quality or safety of this product range.
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Contactum - 6KA Type A C Curve SP Compact RCBO's
Loading …
B Curve Shown
CP CBR0610AC
CP CBR0616AC
CP CBR0620AC
CP CBR0625AC
CP CBR0632AC
CP CBR0640AC
Contactum
6KA Type A SP Compact RCBO's
C Curve
6KA Type A SP Compact RCBO's
C Curve
Type A as standard, Faster installation time, Faster testing time and Compact in size. Available in B or C tripping curve, 6kA & 10kA breaking capacities from 6-50A making it one of the most comprehensive ranges on the market today.
The removal of the functional earth reduces the number of connections on the installation as well as removing the need to remove the functional earth whilst carrying insulation resistance testing. This clear improvement on installation time, without compromising the quality or safety of this product range.
The removal of the functional earth reduces the number of connections on the installation as well as removing the need to remove the functional earth whilst carrying insulation resistance testing. This clear improvement on installation time, without compromising the quality or safety of this product range.
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Sprint Cable Entry Glands - for all twin and earth cables
Loading …
Sprint Cable Entry Glands
offer full protection for all twin and earth cables
Complies with 18th Edition Wiring Regulations BS7671 for metal consumer units.
Technical:Data Sheet 190kb PDF |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
SPRINT Cable Glands for Tails and Earth Cables
Loading …
See product for Accessories
SPRINT Cable Glands
for Tails and Earth Cables
for Tails and Earth Cables
offer full protection for tails and earth cables
Complies with 18th Edition Wiring Regulations BS7671 for metal consumer units.
| See product for Accessories |
Technical:Data Sheet 190kb PDF WKTKEP50 Datasheet pdf Datasheet - 690kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
SPRINT Brass Cable Glands for Tails and Earth Cables
Loading …
See product for Accessories
SPRINT Brass Cable Glands
for Tails and Earth Cables
for Tails and Earth Cables
offer full protection for tails and earth cables
Complies with 18th Edition Wiring Regulations BS7671 for metal consumer units.
| See product for Accessories |
Technical:Data Sheet 190kb PDF |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Wiska - Sprint - Flame Retardant Grommets Cable Entry Kit EMT-F
Loading …
SPRINT
Flame Retardant Grommets Kit
Flame Retardant Grommets Kit
Complies with 18th Edition Wiring Regulations BS7671 for metal consumer units.
Made from Flame Retardant Material
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Consumer Unit Command and Control Accessories
See product for Accessories
Defender Ranges
Consumer Unit Command and Control Accessories
Consumer Unit Command and Control Accessories
- See each product
| See product for Accessories |
Technical:See each product |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Flexi Meter Tail Packs
Loading …
See product for Accessories
Flexi Meter Tail Packs
25mm 6181Y Brown & Blue (19 Strands)
16mm 6491X Green Yellow
25mm 6181Y Brown & Blue (19 Strands)
16mm 6491X Green Yellow
| See product for Accessories |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Digital DIN Rail Mounting Compact Timers
Loading …
SM NTDR16C
GK T80C
Digital DIN Rail Mounting Compact Timers
16A Resistive, 2A Inductive
16A Resistive, 2A Inductive
For use in control panels, distribution boards and consumer units.
24hr/7 day programming.
Volt free contacts.
24hr/7 day programming.
Volt free contacts.
Technical:Instructions - pdf 109kb SMNTDR16C Datasheet - 375kb pdf Instructions - 720kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
100mm x 100mm Maxi Trunking c/w End Caps - 1Mtr length
Loading …
Supplied with 2 End Caps
100mm x 100mm PVC Trunking c/w End Caps
1Mtr length
1Mtr length
Designed for use with consumer unit and distribution board Installations
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
