Walkover Light - 9 White LED's50367971305711806Wh
Loading …
Face Plate: - 88mm
Hole Size: - 80 mm
Min Depth: - 85 mm
Hole Size: - 80 mm
Min Depth: - 85 mm

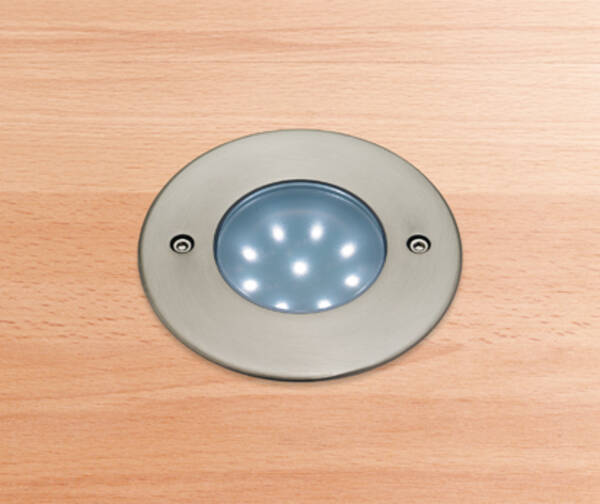

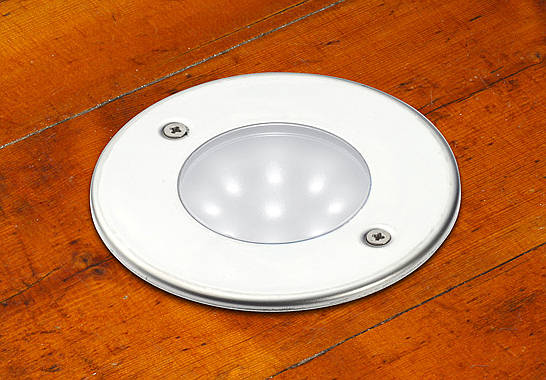

Walkover Light - 9 White LEDs
Ideal for outdoor use, pedestrian paths, driveways,
illumination of swimming pools under constant immersion (up to 3 metres deep). Rated IP68.
Suitable for the passage of vehicles. static pressure rating 1000kg.
- Supply voltage:24vDC,
- Absorbed power:1.2w,
- Use with FL1808 Transformer
A Maximum of 16 x 1806 may be linked using just one FL 1808 transformer. - A maximum cable run from one FL 1808 is 30 metres!
- If the transformer is being sited outside a weatherproof enclosure will be required - click on transformer code for suggestions
- Please note that the FL 1808 is not a standard transformer as it converts 240v AC into 24v DC not 240v AC into 12v AC like normal electronic transformers.
- Suitable Cables
Internal: 1mm 2 core Pvc flex
External: 1mm 2 or 3 core Rubber Flex
Please note external cables may need further protection depending on installation.
- Body and recessed housing in high resistance techno polymer.
- Ring is die-cast satined metal and is highly resistant to chemical and atmospheric agents.
- Light source is a Non Replaceable
9 LED Osram module:
Life approx 30,000 hrs - Wired in Parallel
Technical:Installation Instructions 280kb .pdf Wiring Information IP Rating Chart |
Order Code
Description
Price (ex VAT)
Price (inc VAT)
Quantity
FL 1806W
Walkover Light - 9 White LED's
EACH |
3+ |
|---|---|
£37.60 |
£36.25 |
EACH |
3+ |
|---|---|
£45.12 |
£43.50 |
Weatherproof Cable Connectors
Weatherproof Cable Connectors
- See each product
| See product for Accessories |
Technical:See each product |
Order Code
Description
Price (ex VAT)
Price (inc VAT)
Quantity
WK LEDJOY
IP68 Gel Filled Junction Device c/w 24A Connectors
EACH |
3+ |
|---|---|
£7.99 |
£7.50 |
EACH |
3+ |
|---|---|
£9.59 |
£9.00 |
TL RC2OR
10A 2 Pin Lead Connector Orange
EACH |
10+ |
50+ |
|---|---|---|
£2.95 |
£2.70 |
£2.45 |
EACH |
10+ |
50+ |
|---|---|---|
£3.54 |
£3.24 |
£2.94 |
TL RC3
10A 3 Pin Lead Connector - Black
EACH |
10+ |
50+ |
|---|---|---|
£2.95 |
£2.70 |
£2.45 |
EACH |
10+ |
50+ |
|---|---|---|
£3.54 |
£3.24 |
£2.94 |
BR H65Z
24A Waterproof Flex Connector - IP68
EACH |
3+ |
|---|---|
£4.25 |
£3.99 |
EACH |
3+ |
|---|---|
£5.10 |
£4.79 |
WK SH0325
6A Gel Insulated Straight Through Joint - 3 Core Flex - IPx8
EACH |
|---|
£7.85 |
EACH |
|---|
£9.42 |
KB JB002
16A Weatherproof Inline connector (3 pole) - IP68
EACH |
3+ |
|---|---|
£4.60 |
£4.30 |
EACH |
3+ |
|---|---|
£5.52 |
£5.16 |
KB JB0011
16A Plug and Socket Cable Connector (3 pole) - IP68
EACH |
3+ |
|---|---|
£4.50 |
£4.20 |
EACH |
3+ |
|---|---|
£5.40 |
£5.04 |
KB JB003
16A Weatherproof 3 way T Cable Connector (3 Pole) - IP68
EACH |
3+ |
|---|---|
£5.25 |
£4.75 |
EACH |
3+ |
|---|---|
£6.30 |
£5.70 |
KB JB004
16A Weatherproof Junction Box - IP68
EACH |
3+ |
|---|---|
£5.95 |
£5.40 |
EACH |
3+ |
|---|---|
£7.14 |
£6.48 |
Cable and Accessories
Order Code
Description
Price (ex VAT)
Price (inc VAT)
Quantity
CA 1R3
1.0mm² 3 Core Rubber Flex Black 100M
per M |
per 50M |
per 100M |
|---|---|---|
£1.11 |
£44.50 |
£73.00 |
per M |
per 50M |
per 100M |
|---|---|---|
£1.33 |
£53.40 |
£87.60 |
CA 1F2
1.0mm² 2 Core PVC Flex White 100M
per M |
per 100M |
|---|---|
£0.51 |
£30.00 |
per M |
per 100M |
|---|---|
£0.61 |
£36.00 |
FL 1808
24 Volt 20 watt DC LED Driver Transformer
EACH |
3+ |
|---|---|
£30.90 |
£29.25 |
EACH |
3+ |
|---|---|
£37.08 |
£35.10 |
