240v 50w GU10 Halogen Fire Rated Downlight - Brushed Chrome5055832976752VFCDBC
Loading …

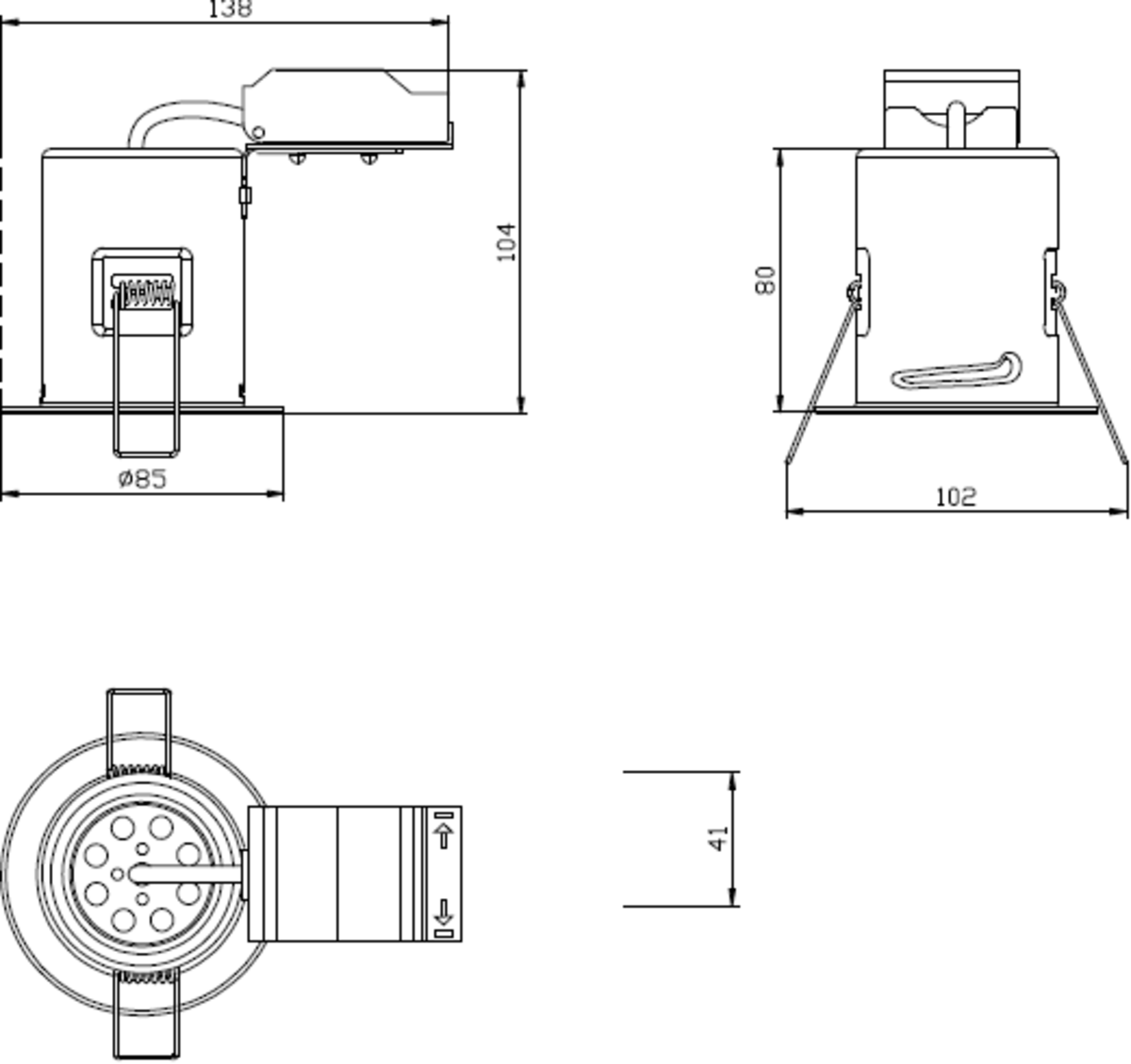

Dimensions (mm)
Height: 104mm
Diameter: 85mm
Cut-out: 65mm
Recessed Depth: 80 mm
Minimum void: 154mm
Height: 104mm
Diameter: 85mm
Cut-out: 65mm
Recessed Depth: 80 mm
Minimum void: 154mm
Fire Rated Downlights
GU10 Downlight - Brushed Chrome
GU10 Downlight - Brushed Chrome
to meet the stringent legal requirements of the Building Regulations Parts B&E.
The recent addition of Part E to the Building Regulations has presented the House Builder with
the problem of how to maintain acoustic integrity yet allow the installation of downlighters,
which by their very nature, must puncture the ceiling lining, which affords acoustic integrity.
The design provides a sealed barrier between the underside of the ceiling and its associated void area.
This clever design also incorporates intumescent materials which ensure the luminaire can withstand the onslaught of fire in accordance with the requirements of Part B of the Building regulations.
Thus from one simple to install luminaire the both regulations can be complied with, negating the need for separate fire hoods or a segregated ceiling void as requested by The Standard Robust Details.
- Fast-fix installation
- Push-fit terminals
- Loop in/ loop out
- GU10 LED/ halogen compatible
- Dimmable Dependant on lamp
- Lamp Included - No
- Wattage(W) - 50W maximum
- Input voltage - 230V 50Hz
- Construction - Pressed Steel
- Class Class I
- IP rating - IP20
- Warranty 3 Years
Technical:FRCD - Instructions IP Rating Chart |
| Order Code | Description | Price (ex VAT) | Price (inc VAT) | Quantity | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FR CDBC | 240v 50w GU10 Halogen Fire Rated Downlight - Brushed Chrome |
|
|
4.5w 35° GU10 SMD LED Glass Lamps
Loading …
Height - 56mm
Dia - 50mm
4.5w 35° GU10 SMD LED Glass Lamps
Non Dimmable
Special Offer
Non Dimmable
Special Offer
Energy Saving LED Glass GU10
Ideal for retrofit
Ideal for retrofit
| Order Code | Description | Price (ex VAT) | Price (inc VAT) | Quantity | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
LA GU4CW | 4.5w 35° GU10 SMD LED Glass Lamp - Cool White Special Offer |
|
|
|||||||||
|
LA GU4WW | 4.5w 35° GU10 SMD LED Glass Lamp - Warm White Special Offer |
|
|
LEDlite - 50° GU10 LED COB High Output Lamp 240v
Loading …
conservative comparison
LT COB4
60w GU10 daylight white lamp
LT COB6
80w GU10 daylight white lamp
LEDlite
50° GU10 LED COB High Output Lamp 240v
50° GU10 LED COB High Output Lamp 240v
a standard halogen GU10 lamp with an 87% saving of energy.
With a newly designed unique aluminium reflector and Self Extinguishing Polycarbonate base,
the same size as a standard halogen lamp, coupled with a specially designed lens
for maximum magnification, the spread of light and look of this innovative lamp
will be an excellent replacement for your old halogen lamps lasting ten times longer!
Dimmable (most trailing edge dimmers)
| See product for Accessories |
| Order Code | Description | Price (ex VAT) | Price (inc VAT) | Quantity | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
LT COB4DL | 5 Watt 50° GU10 COB LED High Output Lamp 240v - Daylight White |
|
|
|||||||||
|
LT COB4NW | 5 Watt 50° GU10 COB LED High Output Lamp 240v - Neutral White |
|
|
|||||||||
|
LT COB4WW | 5 Watt 50° GU10 COB LED High Output Lamp 240v - Warm White |
|
|
|||||||||
|
LT COB6DL | 6.5 Watt 50° GU10 COB LED High Output Lamp 240v - Daylight White |
|
|
|||||||||
|
LT COB6NW | 6.5 Watt 50° GU10 COB LED High Output Lamp - Neutral White |
|
|
|||||||||
|
LT COB6WW | 6.5 Watt 50° GU10 COB LED High Output Lamp - Warm White |
|
|
LEDlite GU10 SMD LED Ceramic High Output Lamps - Non Dimmable
Loading …
LEDlite
Non Dimmable
5 Watt 110° GU10 SMD LED Ceramic High Output Lamps
Non Dimmable
5 Watt 110° GU10 SMD LED Ceramic High Output Lamps
a standard halogen GU10 lamp with an 85% saving of energy.
With a newly designed unique ceramic body, creating negligible heat,
with the same size as a standard halogen lamp, the spread of light and look of this innovative lamp
will be an excellent replacement for your old halogen lamps lasting many times longer!
Producing a super bright daylight white light
Using 5w of power, these are the ultimate energy saving lamp.
These high performance SMD LED's are of outstanding performance and quality
and not to be confused with cheaper budget LED's on sale!
| Order Code | Description | Price (ex VAT) | Price (inc VAT) | Quantity | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
LT SM5DL | 5 Watt 110° GU10 SMD LED Ceramic High Output Lamp - Daylight White |
|
|
|||||||||
|
LT SM5NW | 5 Watt 110° GU10 SMD LED Ceramic High Output Lamp - Neutral White |
|
|
|||||||||
|
LT SM5WW | 5 Watt 110° GU10 SMD LED Ceramic High Output Lamp - Warm White |
|
|
LEDlite GU10 SMD LED Lamps
Loading …
LEDlite
Dimmable
5 Watt 110° GU10 SMD LED Lamps
Dimmable
5 Watt 110° GU10 SMD LED Lamps
a standard halogen GU10 lamp with an 85% saving of energy.
With a newly designed unique ceramic body, creating negligible heat,
with the same size as a standard halogen lamp, the spread of light and look of this innovative lamp
will be an excellent replacement for your old halogen lamps lasting many times longer!
Producing a super bright light, in daylight white.
Using 5w of power, these are the ultimate energy saving lamp.
These high performance SMD LED's are of outstanding performance and quality
and not to be confused with cheaper budget LED's on sale!
Dimmable (most trailing edge dimmers)
| See product for Accessories |
Technical:Dimmer Mode Change Instructions 80kb pdf |
| Order Code | Description | Price (ex VAT) | Price (inc VAT) | Quantity | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LT SMD5DL | 5 Watt 110° GU10 SMD LED Lamp - Daylight White - Dimmable |
|
|
|||||||||
|
LT SMD5NW | 5 Watt 110° GU10 SMD LED Lamp - Neutral White - Dimmable |
|
|
|||||||||
|
LT SMD5WW | 5 Watt 110° GU10 SMD LED Lamp - Warm White - Dimmable |
|
|
5 Watt GU10 MCOB LED Lamps
Loading …
LEDlite
5 Watt GU10 MCOB LED Lamp
Non Dimmable
5 Watt GU10 MCOB LED Lamp
Non Dimmable
With a specially designed aluminium reflector, to mimic a halogen GU10 lamp and lens to maximize light distribution
This lamp boasts a light output 30% higher than an average 50 watt GU10 halogen lamp.
With a power output of only 5 watts this range constitutes a 90% saving of electricity
with a life expectancy of more than ten times that of the halogen.
The lamp has a 40 degree standard beam angle
Available in three different colours: warm white; Neutral White and daylight.
| Order Code | Description | Price (ex VAT) | Price (inc VAT) | Quantity | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
LT MCOB5DL | 5 Watt GU10 MCOB LED Lamp 40° - Daylight New Just Arrived |
|
|
|||||||||
|
LT MCOB5NW | 5 Watt GU10 MCOB LED Lamp 40° - Neutral White New Just Arrived |
|
|
|||||||||
|
LT MCOB5WW | 5 Watt GU10 MCOB LED Lamp 40° - Warm White New Just Arrived |
|
|
LEDlite - 38° High Power GU10 LED - Colours - V9
Loading …
and DO NOT reflect the true brightness
LEDlite
38° High Power GU10 LED - Colours - V9
Next Generation
38° High Power GU10 LED - Colours - V9
Next Generation
Light output = to 9w Standard GU10 Blue LED Lamp
These lamps are compliant with Part L1a Energy Criteria
They are exactly the same size as traditional halogen GU10 lamps,
so you can directly replace your older, inefficient lamps.
Suitable for indoor or outdoor use in spotlights or downlighters
Producing a super bright Blue light,
Using less than 5w of power, these are the ultimate energy saving lamp.
Creating negligible heat and can last up to 15 times longer than halogen equivalents.
These high performance LED's are of outstanding performance and quality.
and not to be confused with cheaper budget LED's on sale!
| Order Code | Description | Price (ex VAT) | Price (inc VAT) | Quantity | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
LT GU9B | 4.9 Watt 38° GU10 High Power LED Lamp 240v - Blue - V9 --- Price Cut --- |
|
|
|||||||||
 |
LT GU9G | 4.9 Watt 38° GU10 High Power LED Lamp 240v - Green - V9 |
|
|
|||||||||
 |
LT GU9R | 4.9 Watt 38° GU10 High Power LED Lamp 240v - Red - V9 --- Price Cut --- |
|
|
|||||||||
 |
LT GU9Y | 4.9 Watt 38° GU10 High Power LED Lamp 240v - Yellow - V9 --- Price Cut --- |
|
|
LEDlite 4 Watt GU10 High Power LED Lamp 240v Colour
Loading …
LT SMD4B
LT SMD4G
LT SMD4R
LEDlite
4 Watt GU10 High Power LED Lamp 240v
Colour
4 Watt GU10 High Power LED Lamp 240v
Colour
The 4W SMD Coloured GU10 LED Lamps are exactly the same size
as traditional GU10 halogen lamps, so you can directly replace your older, inefficient lamps.
These high performance LED's are of outstanding performance and quality
and not to be confused with cheaper budget leds on sale!
as traditional GU10 halogen lamps, so you can directly replace your older, inefficient lamps.
These high performance LED's are of outstanding performance and quality
and not to be confused with cheaper budget leds on sale!
Technical:SMD4 LED Data Sheet 1.1Mb pdf |
| Order Code | Description | Price (ex VAT) | Price (inc VAT) | Quantity | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
LT SMD4B | 4 Watt GU10 High Power LED Lamp 240v - Blue New |
|
|
|||||||||
 |
LT SMD4G | 4 Watt GU10 High Power LED Lamp 240v - Green New |
|
|
|||||||||
 |
LT SMD4R | 4 Watt GU10 High Power LED Lamp 240v - Red New |
|
|
Accessories
| Order Code | Description | Price (ex VAT) | Price (inc VAT) | Quantity | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
FX THS65 | 65mm Bi-Metal Deep Cut Holesaw 2.9/16'' |
|
|
|||||||||
 |
FX THS3 | Mandrel for 32 to 152mm Hole Saws --- Price Cut --- |
|
|
|||||||||
 |
FX DADE | Holesaw - Dust and Debris Eliminator |
|
|
|||||||||
 |
TL CT101C | 20A 3 Pin Push Junction Box / Connector (male&female) Special Offer |
|
|
|||||||||
 |
AS J501 | Ashley J501 16 Amp Downlighter Junction Box |
|
|
|||||||||
 |
GK LC20 | 20A 3 Pin Lighting Connector |
|
|
