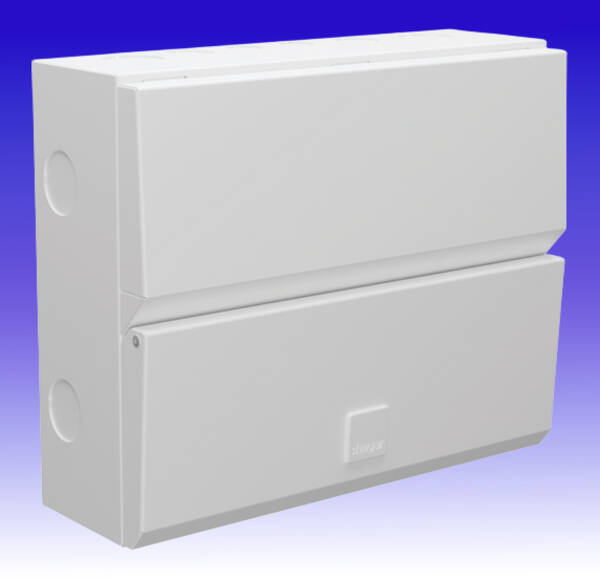

10 Way Metal Consumer Unit c/w 100A Main Switch
Product Code: HG VME110
5015652608059
VME110
Loading …
Height: 240mm
Width: 293mm
Depth: 103mm
Hager - Design Evo
10 Way Metal Consumer Unit c/w 100A Main Switch
10 Way Metal Consumer Unit c/w 100A Main Switch
Design Evo is the enhanced board for use in applications where the consumer unit is located in a living area of the dwelling.
The single row range of consumer units with a 116A rated current (InA) have been designed for installations where the upstream overcurrent protection device (OCPD) is rated at 100A or below, the 116A (InA) is where the consumer unit can be used with a 16A generation set when the bi-directional RCBO can be installed at the far end of the busbar.
The single row range of consumer units with a 116A rated current (InA) have been designed for installations where the upstream overcurrent protection device (OCPD) is rated at 100A or below, the 116A (InA) is where the consumer unit can be used with a 16A generation set when the bi-directional RCBO can be installed at the far end of the busbar.
- Cable clamp secures supply cables on entry to main incoming device preventing any movement being transmitted through meter tails to device
- Round cable entry points top, bottom and sides
- Rear knockouts for ease of cable entry - cable protector plate provided
- Rigid top wall enhances rigidity to prevent distortion when removing knockouts
- Locate and hold cover allows use of both hands whilst fixing cover
- Front cover retained screws prevents loss during installation
- Full metal DIN rail - secure and stable attachment of devices
- Quick release clip on MCB/RCBO allows removal of MCB/RCBO with busbar still in place
- Optimised cabling space - DIN rail position allows maximum cabling space
- Top mounted terminal rail makes the wiring of the neutral and earth connections neat and simple
- Torque settings displayed inside front cover so they’re easily accessible by the electrician
- Single row references have a 116A InA
Height: 240mm
Width: 293mm
Depth: 103mm
Technical:Datasheet - 320kb pdf Instructions - 3.5mb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
HG VME110
10 Way Metal Consumer Unit c/w 100A Main Switch |
Std MCBs for Hager boards
Loading …
See product for Accessories
Hager MCB's ( Type B )
6KA
6KA
Hager MCB's detect overcurrents due to both overload and fault currents.
The MCB will operate and interrupt the supply to prevent damage to the installation.
| See product for Accessories |
Technical:MCB Selection |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Hager 30mA RCBO (Type A) B Curve (compact)
Loading …
HG ADA306G
Hager
30mA RCBO (Type A)
B Curve (compact)
30mA RCBO (Type A)
B Curve (compact)
Hager 30mA RCBO (Type A) B Curve (compact)
Technical:Data Sheet - pdf 320Kb |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Hager 30mA RCBO 6kA - (Type A) B Curve Bi-directional (Compact)
Loading …
Hager
30mA RCBO 6kA - (Type A)
B Curve Bi-directional (Compact)
30mA RCBO 6kA - (Type A)
B Curve Bi-directional (Compact)
The ADB9 range of RCBOs aids compliance with BS 7671 (latest edition), where additional protection by means of a 30mA RCD is required. Featuring a 2P switched neutral design and bi-directional functionality, is well adapted for micro-generation applications, where a Type A RCBO may be required.
Insulation resistance testing (IR test) can be carried out at 500V DC on the load side terminals with the device in the off position, without the need to disconnect the Line or Neutral conductors.
Insulation resistance testing (IR test) can be carried out at 500V DC on the load side terminals with the device in the off position, without the need to disconnect the Line or Neutral conductors.
Technical:Datasheet - 600kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Type 2 Single Phase SPD (Surge Protection Device)
Loading …
Hager
Type 2 Single Phase SPD (Surge Protection Device)
Type 2 Single Phase SPD (Surge Protection Device)
A Surge protection kit specifically developed for Hager consumer units. Developed to ensure optimal performance of SPD technology within residential single phase consumer units. SPD is CT2 type to ensure compatibility with all common UK Earthing arrangements e.g. TN-C-S (PME), TN-S and TT earthing arrangements. This is an IEC Type 2 / class II SPD for single phase power supply networks.
This SPD kit fits within the standard consumer unit with exception of a split load dual RCD board where the SPD needs to be fitted on the high integrity side of the board. Line connection is provided by the busbar, Neutral and Earth connections are via 6mm cable links from the top of the SPD to the earth and neutral terminal bar.
This SPD kit fits within the standard consumer unit with exception of a split load dual RCD board where the SPD needs to be fitted on the high integrity side of the board. Line connection is provided by the busbar, Neutral and Earth connections are via 6mm cable links from the top of the SPD to the earth and neutral terminal bar.
- Single module SPD
- Mounting: 35mm DIN rail
- Suitable for CT2 connection as per 534.4.3.2 BS7671 18th Edition
- Optical status indication for cartridge replacement
- Pluggable surge protection module for ease of replacement
- Cartridge can be routinely checked and changed if required without interrupting supply to loads
- No secondary back-up protection required
Technical:HGVMES02SPD Datasheet - 1.55mb pdf HGVMES02SPD Instructions - 1.22mb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Hager - DP AFDD Type A - 6KA
Loading …
Hager
30mA DP AFDD / RCBO
B Curve - Type A
30mA DP AFDD / RCBO
B Curve - Type A
RCBO with dangerous arc detection 1M 16A B curve 6kA Type A 30mA.
RCBO-AFD in 1 module is a single device consisting of a miniature circuit breaker (MCB) unit and residual current detection (RCD) unit with an integrated Arc fault detection (AFD) unit.
Following the publication of Amendment 2 of the 18th Edition Wiring Regulation on 28th March 2022, the use of Arc Fault Detection Devices (AFDD) have been made mandatory use in certain types of installations:
- Higher Risk Residential Buildings (HRRB)
- Houses in Multiple Occupation (HMO)
- Purpose-Built Student Accommodation (PBSA)
- Care homes
The AFDD mitigates the risk of a fire in the final electrical circuits of a fixed installation due to arcing fault currents, which under certain conditions present a fire ignition risk due to dangerous arc fault.
RCBO-AFD in 1 module is a single device consisting of a miniature circuit breaker (MCB) unit and residual current detection (RCD) unit with an integrated Arc fault detection (AFD) unit.
Following the publication of Amendment 2 of the 18th Edition Wiring Regulation on 28th March 2022, the use of Arc Fault Detection Devices (AFDD) have been made mandatory use in certain types of installations:
- Higher Risk Residential Buildings (HRRB)
- Houses in Multiple Occupation (HMO)
- Purpose-Built Student Accommodation (PBSA)
- Care homes
The AFDD mitigates the risk of a fire in the final electrical circuits of a fixed installation due to arcing fault currents, which under certain conditions present a fire ignition risk due to dangerous arc fault.
Technical:AFDD Guide pdf AFDD Guidance Notes - 3.5mb pdf AFDD Range Datasheet - 1.5mb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Digital DIN Rail Mounting Compact Timers
Loading …
GK T80C
FB TD1
EU ECMFT
Digital DIN Rail Mounting Compact Timers
16A Resistive
16A Resistive
For use in control panels, distribution boards and consumer units.
24hr/7 day programming.
24hr/7 day programming.
- See each product
Technical:See each product |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Wiska - Sprint - Flame Retardant Grommets
Loading …
SPRINT
Flame Retardant Grommets
Flame Retardant Grommets
Complies with 18th Edition Wiring Regulations BS7671 for metal consumer units.
Made from Flame Retardant Material
Technical:WKEMTF20 Datasheet - 170kb pdf WKEMTF25 Datasheet - 170kb pdf WKEMTF32 Datasheet - 170kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Sprint Cable Entry Glands - for all twin and earth cables
Loading …
Sprint Cable Entry Glands
offer full protection for all twin and earth cables
Complies with 18th Edition Wiring Regulations BS7671 for metal consumer units.
Technical:Data Sheet 190kb PDF |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
SPRINT Cable Glands for Tails and Earth Cables
Loading …
cables not included
See product for Accessories
SPRINT Cable Glands
for Tails and Earth Cables
for Tails and Earth Cables
offer full protection for tails and earth cables
Complies with 18th Edition Wiring Regulations BS7671 for metal consumer units.
| See product for Accessories |
Technical:Data Sheet 190kb PDF WKTKEP50 Datasheet pdf Datasheet - 690kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
SPRINT Brass Cable Glands for Tails and Earth Cables
Loading …
See product for Accessories
SPRINT Brass Cable Glands
for Tails and Earth Cables
for Tails and Earth Cables
offer full protection for tails and earth cables
Complies with 18th Edition Wiring Regulations BS7671 for metal consumer units.
| See product for Accessories |
Technical:Data Sheet 190kb PDF |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
32mm Tail Kit Brass - 2 x 16mm Tail & 1 x 16mm Earth Cables --- Price Drop --- |
|
Flexi Meter Tail Packs
Loading …
See product for Accessories
Flexi Meter Tail Packs
25mm 6181Y Brown & Blue (19 Strands)
16mm 6491X Green Yellow
25mm 6181Y Brown & Blue (19 Strands)
16mm 6491X Green Yellow
| See product for Accessories |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Maxi Trunking c/w End Caps - 1Mtr length
Loading …
Supplied with 2 end caps
PVC Trunking c/w End Caps
1Mtr length
1Mtr length
Designed for use with consumer unit and distribution board installations.
|
