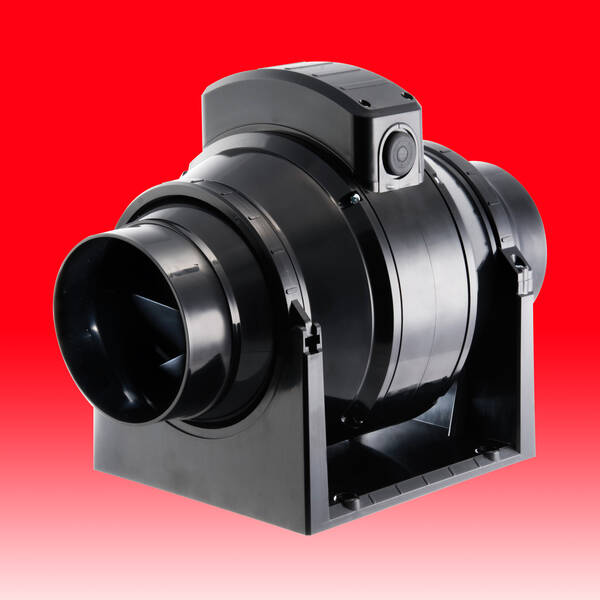

100mm Mixed Flow In-Line Fan c/w Timer
Product Code: MR MF100T
5020953554905
MF100T / UMD100TX
Loading …
Width: 175mm
Height: 230mm
Length: 298mm
Spigot diameter: 100mm
Manrose
100mm MixFlo Commercial In-Line Fan
c/w Timer
100mm MixFlo Commercial In-Line Fan
c/w Timer
These powerful, in-duct mounted mixed flow fans have been designed to
produce higher working pressures for applications that require high air
flows, with low relative noise.
MixFlo fans can be mounted in a variety of applications and are suitable
for use with either rigid or flexible ducting.
High quality ball bearing, long life motors, continuously rated and warranted for a minimum of 30,000 hours or 3 years.
Installation Type: Inline Duct, Ceiling Void.
Control Type: Adjustable Run-on Timer.
produce higher working pressures for applications that require high air
flows, with low relative noise.
MixFlo fans can be mounted in a variety of applications and are suitable
for use with either rigid or flexible ducting.
High quality ball bearing, long life motors, continuously rated and warranted for a minimum of 30,000 hours or 3 years.
Installation Type: Inline Duct, Ceiling Void.
Control Type: Adjustable Run-on Timer.
- Maximum airflow: 245 m³/hr
- Max. sound pressure level: 24 dB(A) @ 3m
- High air flows are achieved through flexible duct
- All models have 3 speed settings selected via an internal dip switch
- Compact overall dimensions
- Double insulated – no earth required
- Fully Building Code compliant
- Fully BEAB approved rated to IPX4
- Round Ducting & Accessories (optional)
4 inch Round Ducting
Width: 175mm
Height: 230mm
Length: 298mm
Spigot diameter: 100mm
Technical:MixFlo Datasheet 365kb - pdf MixFlo Instructions 600kb - pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
MR MF100T
100mm Mixed Flow In-Line Fan c/w Timer |
4 Inch Round Flexible Ducting
Loading …
See product for Accessories
4 Inch Round Flexible Ducting
| See product for Accessories |
Technical:FDTF Datasheet 1.3mb |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
4 Inch Wall Grilles
Loading …
4 Inch Fixed Grilles
Wall / Ceiling
Wall / Ceiling
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
4 Inch (100mm) Fixed Wall Grille c/w Flyscreen
Loading …
4 Inch (100mm) Fixed Wall Grille
c/w Flyscreen
c/w Flyscreen
Grille with fixed louvres and flyscreen for use in ducting systems.
Suitable for wall or ceiling installations in ventilation and extraction setups.
Suitable for wall or ceiling installations in ventilation and extraction setups.
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
4 Inch Wall Grilles with Backdraft Shutter
Loading …
4 Inch Wall Grilles
with Backdraft Shutter
with Backdraft Shutter
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
4 Inch Stainless Steel Round Cowls
Loading …
4 Inch Stainless Steel Round Cowls
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
100mm / 4'' Adjustable Circular Air Diffuser
Loading …
100mm / 4'' Adjustable Circular Air Diffuser
within duct or in-line fans where there is more than one extract point.
Technical:Data Sheet - 375kb Fire Test 345kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
4 Inch Round Ducting and Accessories
Due to a global shortage of white PVC material
We may supply a mix of Grey and White ducting and accessories
See product for Accessories
4 Inch Round Ducting and Accessories
Due to a global shortage of white PVC material
We may supply a mix of Grey and White ducting and accessories
| See product for Accessories |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Roof Accessories
Loading …
See product for Accessories
Roof Ventilation Accessories
| See product for Accessories |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
