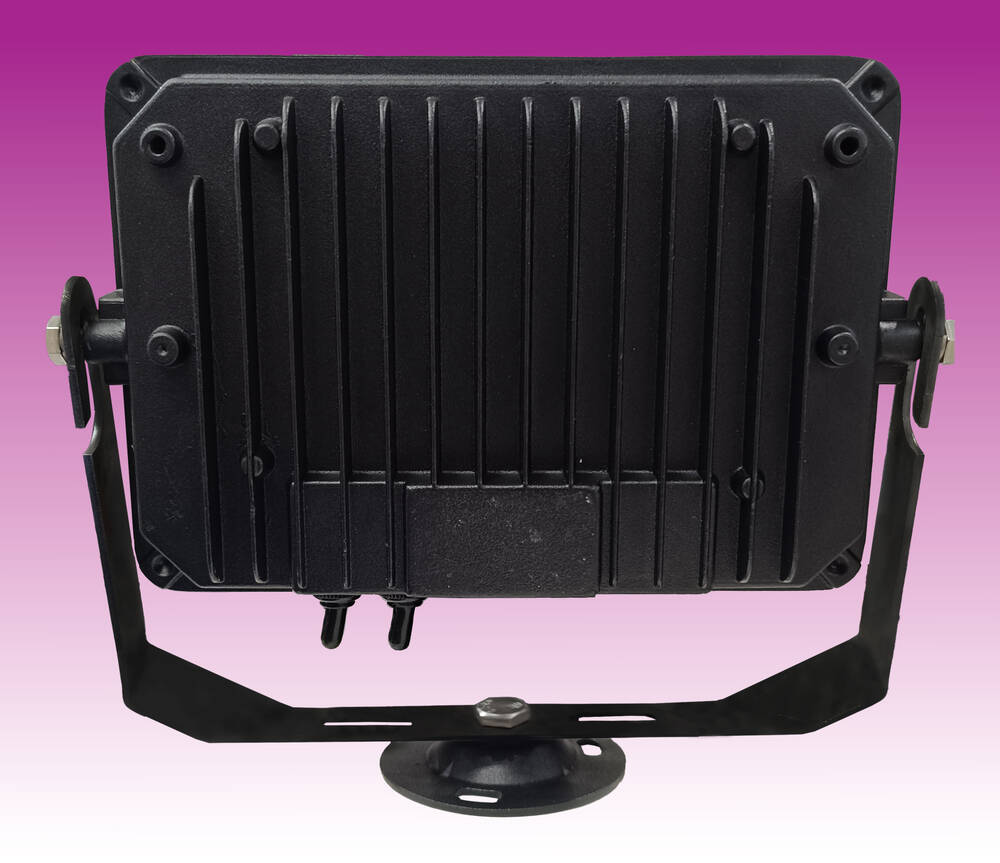

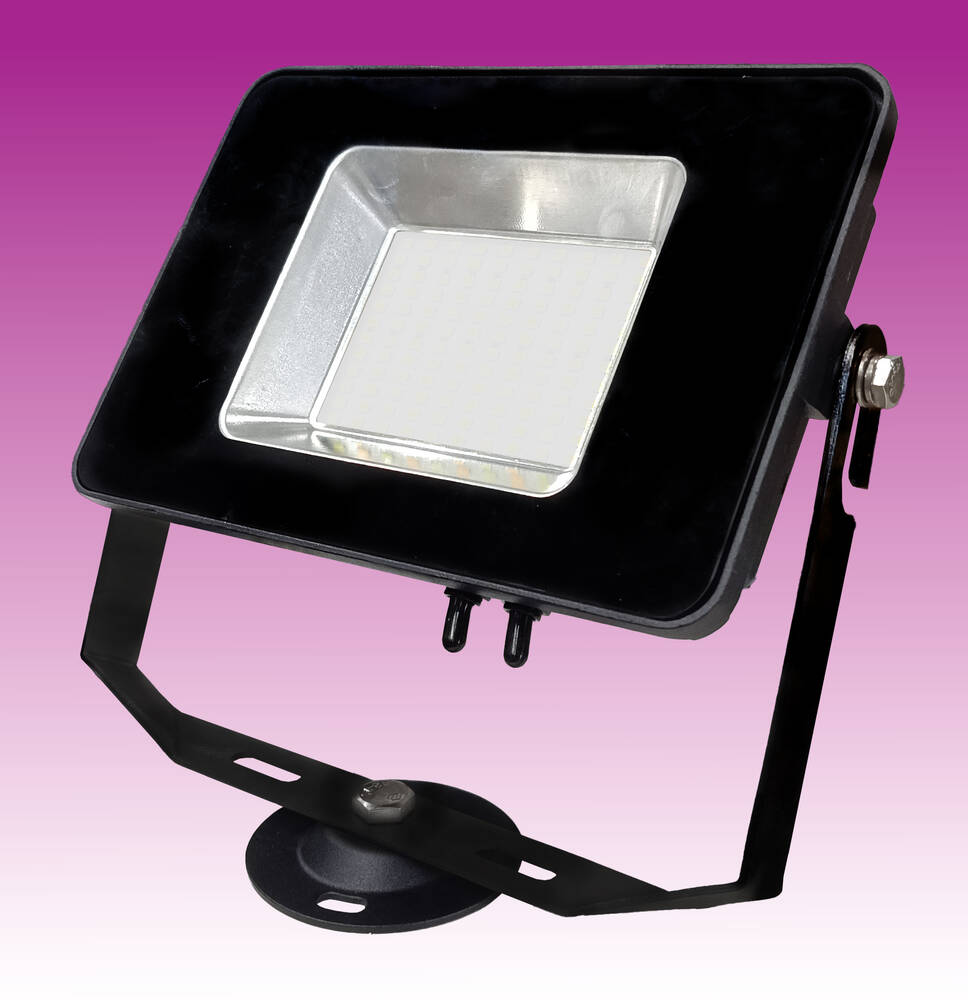

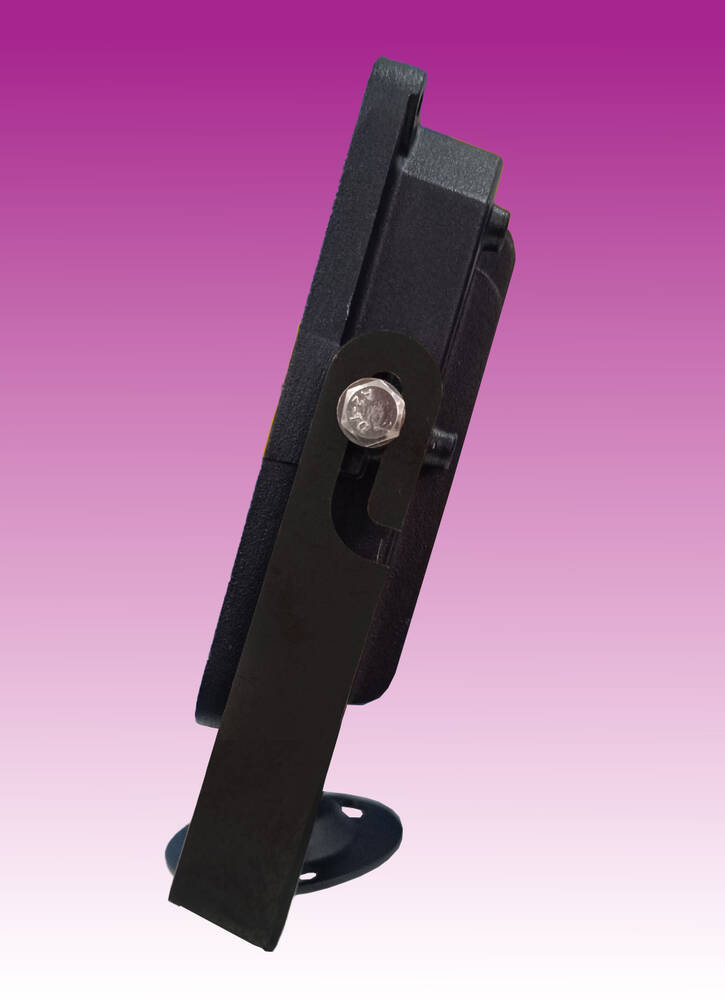

20/30/50W 3CCT LED Quinetic Floodlight
Product Code: QU FL235
5055800111680
QUFL235
Loading …
204mm x 156mm x 36mm
20/30/50W 3CCT LED Floodlight
c/w Quinetic Receiver
c/w Quinetic Receiver
The QUFL235 20/30/50W 3CCT selectable Quinetic LED Floodlight is a professional-grade outdoor luminaire incorporating an integrated Quinetic wireless receiver for direct pairing with Quinetic wireless switches and PIR sensors. By combining wireless control with selectable wattage and colour temperature, a single product can be configured on-site to meet the requirements of a wide variety of lighting installations.
The luminaire features user-selectable 20W, 30W or 50W power settings, 3000K, 4000K or 6000K colour temperatures, and delivers up to 5000 lumens with excellent colour rendering. Manufactured from robust die-cast aluminium with a tempered glass diffuser and an IP65 weather-resistant rating, the QUFL235 is engineered for long-term reliability in demanding outdoor environments. A slide-in mounting bracket and additional round mounting bracket are supplied to simplify installation, making the QUFL235 an ideal solution for both new-build and retrofit commercial or residential projects.
The luminaire features user-selectable 20W, 30W or 50W power settings, 3000K, 4000K or 6000K colour temperatures, and delivers up to 5000 lumens with excellent colour rendering. Manufactured from robust die-cast aluminium with a tempered glass diffuser and an IP65 weather-resistant rating, the QUFL235 is engineered for long-term reliability in demanding outdoor environments. A slide-in mounting bracket and additional round mounting bracket are supplied to simplify installation, making the QUFL235 an ideal solution for both new-build and retrofit commercial or residential projects.
- Voltage range: 220-240 V/AC
- Frequency: 50/60 Hz
- Power: 20/30/50W
- Lumen output: 2000/3000/5000lm ± 5%
- CCT changeable: 3000K/4000K/6000K
- CRI>80
- Class I (requires earth connection)
- Ingress protection: IP65
- Slide-in bracket and additional round bracket for easy installation
- Material: Die-cast aluminium body with tempered glass diffuser
- Ambient temperature range: -20ºC to 40ºC
- Complete with built-in Quinetic Receiver
- Control method: pairing by using Quinetic wireless switches or QUPIR (control distance up to 15m indoor / 60m outdoor)
204mm x 156mm x 36mm
Technical:QUFL235 Datasheet - 1.3mb pdf QUFL235 Instructions - 1.5mb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
QU FL235
20/30/50W 3CCT LED Quinetic Floodlight |
Weatherproof Cable Connectors
See product for Accessories
Weatherproof Cable Connectors
- See each product
| See product for Accessories |
Technical:See each product |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Quinetic Kinetic Wireless Switches - White - Black - Silver - Grey
Loading …
Not for sale to Germany
QU WS2W
QU WS3W
QU WS1B
QU WS2B
QU WS3B
QU WS1S
QU WS2S
See product for Accessories and Quinetic Receivers
Quinetic
Wireless Switches
Wireless Switches
The latest Quinetic switch design can be used with any receiver including dimming receivers.
Dimming Quinetic Wireless Switch has a formidable range being effective up to 25m indoors, depending on structural conditions.
In addition, 1 to 3 gang switch variants have an IP rating of IP67, giving them ample protection from both dust and rain, allowing them to be used outdoors with a control range of up to 80m.
Innovation of Wireless Kinetic Technology
The Quinetic wireless switch has a built-in micro energy generator.
The action of pressing the switch, generates enough kinetic energy to create and transmit a radio signal
and switch on/off via a receiver (wireless controller) the lamp or other loads.
This solves an age old problem of having to install switch wiring over the past 130 years since
the invention of the light bulb.
No Wiring. No Battery. Easy Installation
Dimming Quinetic Wireless Switch has a formidable range being effective up to 25m indoors, depending on structural conditions.
In addition, 1 to 3 gang switch variants have an IP rating of IP67, giving them ample protection from both dust and rain, allowing them to be used outdoors with a control range of up to 80m.
Innovation of Wireless Kinetic Technology
The Quinetic wireless switch has a built-in micro energy generator.
The action of pressing the switch, generates enough kinetic energy to create and transmit a radio signal
and switch on/off via a receiver (wireless controller) the lamp or other loads.
This solves an age old problem of having to install switch wiring over the past 130 years since
the invention of the light bulb.
No Wiring. No Battery. Easy Installation
- On / Off Switch
- Dimmable when used with Dimmable Switch Receivers
- See each product
| See product for Accessories and Quinetic Receivers |
Technical:See each product |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Quinetic - Wireless Architrave Switch
Loading …
Not for sale to Germany
See product for Accessories, Boxes and Quinetic Receivers
Quinetic
Wireless Architrave Switch
Wireless Architrave Switch
No Wiring. No Battery. Easy Installation and Usage.
The Quinetic wireless architrave switch is compatible with architrave flush and surface boxes.
It can be used with the standard or with the dimming Quinetic receiving controllers.
It has a built-in micro energy generator - when the switch is pressed the kinetic system transforms the movement into energy.
This transmits a signal to the receiver to turn the lamp or other load on or off.
This solves the issue of having to install switch wiring which has been a problem
ever since the invention of the lamp.
A controller can be controlled by a maximum of 10 separate switches, a switch can pair an unlimited number of controllers.
The Quinetic wireless architrave switch is compatible with architrave flush and surface boxes.
It can be used with the standard or with the dimming Quinetic receiving controllers.
It has a built-in micro energy generator - when the switch is pressed the kinetic system transforms the movement into energy.
This transmits a signal to the receiver to turn the lamp or other load on or off.
This solves the issue of having to install switch wiring which has been a problem
ever since the invention of the lamp.
A controller can be controlled by a maximum of 10 separate switches, a switch can pair an unlimited number of controllers.
- Work Type: Push Button
- Power Source: Micro Energy Acquisition and self-powered
- Communication Model: FSK
- Work Frequency: 433Hz
- Number of Keys: 1 (1 gang)
- Life Time: 200,000 times on/off
- Work Environment Temperature: -30°C ~ 55°C
- Control Distance: 30m (indoor)
- Control Method: Pairing with Quinetic Wireless Controller
- Compatible with 1 Gang Architrave flush or surface boxes with 16mm minimum depth
- 3 Year Warranty
- We at Quinetics have yet again found a practical solution to the old age problem of how to run switch cables through architraveing and other awkward installations.
- Our latest design of Quinetic switches is based on a replacement for a standard architrave switch whereby no switch wires nor power is necessary.
- Our latest QU ASW is compatible with standard flush or surface boxes and can be seamlessly paired with one of our Quinetic controllers be it a simple on-off or dimmable solution.
- It has a built-in micro energy generator - when the switch is pressed the kinetic system transforms the movement into energy.
- This transmits a signal to the receiver to turn the lamp or other load on or off.
| See product for Accessories, Boxes and Quinetic Receivers |
Technical:ASW Datasheet 789kb ASW Instructions 1.5Mb |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Quinetic Fob Switches
Loading …
Not for sale to Germany
See product for Accessories and Quinetic Receivers
Quinetic
Wireless Fob Switches
Wireless Fob Switches
The Quinetic wireless key fob switch is portable and very easy to use.
It has a built-in micro energy generator.
When the switch is pressed, the kinetic system transforms the movement into energy.
This transmits a signal to the receiver to turn the lamp or other load on or off.
Solving the issue of having to install switch wiring which has been a problem ever since the invention of the lamp.
No Wiring. No Battery. Easy installation and usage.
The key fob switch is portable and can be used from up to a maximum distance of 80m oudoors or 25m indoors. There is no longer a need to install back boxes, make holes or channel out for switch lines in the wall if you use the Quinetic wireless switch. The Quinetic switch is safe, convenient and extremely simple to install and use.
N.B. Can be used for dimming when combined with a dimmable receiver.
It has a built-in micro energy generator.
When the switch is pressed, the kinetic system transforms the movement into energy.
This transmits a signal to the receiver to turn the lamp or other load on or off.
Solving the issue of having to install switch wiring which has been a problem ever since the invention of the lamp.
No Wiring. No Battery. Easy installation and usage.
The key fob switch is portable and can be used from up to a maximum distance of 80m oudoors or 25m indoors. There is no longer a need to install back boxes, make holes or channel out for switch lines in the wall if you use the Quinetic wireless switch. The Quinetic switch is safe, convenient and extremely simple to install and use.
N.B. Can be used for dimming when combined with a dimmable receiver.
- See each product
| See product for Accessories and Quinetic Receivers |
Technical:See each product |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Quinetic Wireless Grid Switch Compatible with New BG Nexus Grid
Loading …
Not for sale to Germany
See product for Accessories and Quinetic Receivers
Quinetic
Wireless Grid Switch
Compatible with New BG Nexus Grid Plates
Wireless Grid Switch
Compatible with New BG Nexus Grid Plates
The Quinetic wireless grid switch is compatible with BG R range Nexus grid system and can be
installed into BG Nexus grid plates.
The switch cover is interchangeable, allowing the usage of any BG R Range Nexus Grid switch cover.
It can be used with the standard or with the dimming
Quinetic receiving controller. It has a built-in micro energy generator
when the switch is pressed the kinetic system transforms the movement into energy.
This transmits a signal to the receiver to turn the lamp or other load on or off.
Can be used along side mains voltage gridswitches
No Wiring. No Battery. Easy installation and usage.
installed into BG Nexus grid plates.
The switch cover is interchangeable, allowing the usage of any BG R Range Nexus Grid switch cover.
It can be used with the standard or with the dimming
Quinetic receiving controller. It has a built-in micro energy generator
when the switch is pressed the kinetic system transforms the movement into energy.
This transmits a signal to the receiver to turn the lamp or other load on or off.
Can be used along side mains voltage gridswitches
No Wiring. No Battery. Easy installation and usage.
- Work Type: Push Button
- Power Source: Micro Energy Acquisition and self-powered
- Communication Model: FSK
- Work Frequency: 433Hz
- Number of Keys: 1 (1 gang)
- Life Time: 200,000 times on/off
- Control Distance: 30m (indoor)
- Control Method: Pairing with Quinetic Wireless Controller
- Compatible with BG Nexus Grid Plates
- 3 Year Warranty
- The QUGDBG is compatible with The BG Nexus grid system and can be installed into any BG Nexus grid plates.
- The switch cover is interchangeable, thus allowing one to utilize any BG Nexus Grid switch covers for a great colour changing solution. Whether you require any switches within the grid to be transformed in to 2, 3, 4 (up to 10 way switching) this is a perfect solution whilst aesthetically looking exactly the same as any of the standard switches you have in the grid.
- It can be used with our standard or dimming Quinetic receiving controllers giving great versatility.
- As is the case with all our Quinetic switches, It has a built-in micro energy generator – which when the switch is pressed the kinetic system transforms the movement into energy.
- This transmits a signal to the receiver to turn the lamp or other load on or off.
| See product for Accessories and Quinetic Receivers |
Technical:GDBG Datasheets 2.5Mb GDBG Instructions 1.4Mb |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Quinetic Grid Switch - Compatible with MK Logic Style
Loading …
Not for sale to Germany
See product for Accessories and Quinetic Receivers
Quinetic
Wireless Grid Switch
Compatible with MK Logic Grid
Wireless Grid Switch
Compatible with MK Logic Grid
The Quinetic wireless grid switch is compatible with MK grid plus system
and can be installed into MK grid plus plates.
It can be used with the standard or with the dimming Quinetic receiving controller.
It has a built-in micro energy generator - when the switch is
pressed the kinetic system transforms the movement into energy.
This transmits a signal to the receiver
to turn the lamp or other load on or off.
This solves the issue of having to install switch wiring
which has been a problem ever since the invention of the lamp.
Can be used along side mains voltage gridswitches
No Wiring. No Battery. Easy installation and usage.
and can be installed into MK grid plus plates.
It can be used with the standard or with the dimming Quinetic receiving controller.
It has a built-in micro energy generator - when the switch is
pressed the kinetic system transforms the movement into energy.
This transmits a signal to the receiver
to turn the lamp or other load on or off.
This solves the issue of having to install switch wiring
which has been a problem ever since the invention of the lamp.
Can be used along side mains voltage gridswitches
No Wiring. No Battery. Easy installation and usage.
- Work Type: Push Button
- Power Source: Micro Energy Acquisition and self-powered
- Communication Model: FSK
- Work Frequency: 433Hz
- Number of Keys: 1 (1 gang)
- Life Time: 200,000 times on/off
- Control Distance: 30m (indoor)
- Control Method: Pairing with Quinetic Wireless Controller
- Compatible with MK Logic Grid Plates
- 3 Year Warranty
- See each product
| See product for Accessories and Quinetic Receivers |
Technical:See each product |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Quinetic Grid Switch Compatible with Varilight Powergrid
Loading …
Not for sale to Germany
QU GDVLB
QU GDVLCH
QU GDVLSS
See product for Accessories and Quinetic Receivers
Quinetic
Wireless Grid Switch
Compatible with Varilight PowerGrid
Wireless Grid Switch
Compatible with Varilight PowerGrid
The Quinetic wireless grid switch is compatible with Varilight Powergrid system
and can be installed into Varilight Powergrid plates.
It can be used with the standard or with the dimming Quinetic receiving controller.
It has a built-in micro energy generator - when the switch is
pressed the kinetic system transforms the movement into energy.
This transmits a signal to the receiver
to turn the lamp or other load on or off.
This solves the issue of having to install switch wiring
which has been a problem ever since the invention of the lamp.
Can be used along side mains voltage gridswitches
No Wiring. No Battery. Easy installation and usage.
and can be installed into Varilight Powergrid plates.
It can be used with the standard or with the dimming Quinetic receiving controller.
It has a built-in micro energy generator - when the switch is
pressed the kinetic system transforms the movement into energy.
This transmits a signal to the receiver
to turn the lamp or other load on or off.
This solves the issue of having to install switch wiring
which has been a problem ever since the invention of the lamp.
Can be used along side mains voltage gridswitches
No Wiring. No Battery. Easy installation and usage.
- Work Type: Push Button
- Power Source: Micro Energy Acquisition and self-powered
- Communication Model: FSK
- Work Frequency: 433Hz
- Number of Keys: 1 (1 gang)
- Life Time: 200,000 times on/off
- Control Distance: 30m (indoor)
- Control Method: Pairing with Quinetic Wireless Controller
- Compatible with Varilight Powergrid Plates
- 3 Year Warranty
| See product for Accessories and Quinetic Receivers |
Technical:FAQ's QUGDV Datasheets 1.2Mb QUGDV Instructions 600kb |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Quinetic Wireless Grid Switch Compatible with Knightsbridge Grid
Loading …
QU GDGD
Watch Video
See product for Accessories
Quinetic
Grid Switch - MLA Knightsbridge (compatible)
Grid Switch - MLA Knightsbridge (compatible)
The Kinetic wireless grid switch is compatible with Knightsbridge range grid system and can be installed into Knightsbridge grid plates.
The switch cover is interchangeable, allowing the usage of any Knightsbridge Grid switch cover.
It can be used with the standard or with the dimming Quinetic receiving controller.
It has a built-in micro energy generator - when the switch is pressed the kinetic system transforms the movement into energy - This transmits a signal to the receiver to turn the lamp or other load on or off.
The grid switch can be used from a maximum 30m indoors.
There is no longer a need to make holes or channel out for switch lines in the wall if you use the Quinetic wireless switch.
The Quinetic switch is safe, convenient and extremely simple to install and use.
The switch cover is interchangeable, allowing the usage of any Knightsbridge Grid switch cover.
It can be used with the standard or with the dimming Quinetic receiving controller.
It has a built-in micro energy generator - when the switch is pressed the kinetic system transforms the movement into energy - This transmits a signal to the receiver to turn the lamp or other load on or off.
The grid switch can be used from a maximum 30m indoors.
There is no longer a need to make holes or channel out for switch lines in the wall if you use the Quinetic wireless switch.
The Quinetic switch is safe, convenient and extremely simple to install and use.
- The QUGDGD is compatible with the Knightsbridge Grid system and can be installed into any Knightsbridge Grid plates.
- Whether you require any switches within the grid to be transformed in to 2, 3, 4 (up to 10 way switching) this is a perfect solution whilst aesthetically looking exactly the same as any of the standard switches you have in the grid.
- It can be used with our standard or dimming Quinetic receiving controllers giving great versatility.
- As is the case with all our Quinetic switches, It has a built-in micro energy generator – which when the switch is pressed the kinetic system transforms the movement into energy.
- This transmits a signal to the receiver to turn the lamp or other load on or off.
- Work Type: Push Button
- Power Source: Micro Energy Acquisition and self-powered
- Communication Model: FSK
- Work Frequency: 433Hz
- Number of Keys: 1 (1 gang)
- Life Time: 200,000 times on/off
- Control Distance: 30m (indoor)
- Control Method: Pairing with Quinetic Wireless Controller
- 3 Year Warranty
Watch Video
| See product for Accessories |
Technical:QUGDGD Datasheet 2.2mb - pdf QUGDGD Instructions 1.4mb - pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Quinetic Wireless Grid Switch Compatible with Click Mode MiniGrid
Loading …
Not for sale to Germany
See product for Accessories and Quinetic Receivers
Quinetic
Wireless Grid Switch
Compatible with Click Mode MiniGrid
Polar White
Wireless Grid Switch
Compatible with Click Mode MiniGrid
Polar White
The Quinetic wireless grid switch is compatible with Click Mode MiniGrid system and can be
installed into Click Mode MiniGrid plates.
It can be used with the standard or with the dimming receivers
Quinetic receiving controller. It has a built-in micro energy generator
when the switch is pressed the kinetic system transforms the movement into energy.
This transmits a signal to the receiver to turn the lamp or other load on or off.
Can be used alongside mains voltage gridswitches
installed into Click Mode MiniGrid plates.
It can be used with the standard or with the dimming receivers
Quinetic receiving controller. It has a built-in micro energy generator
when the switch is pressed the kinetic system transforms the movement into energy.
This transmits a signal to the receiver to turn the lamp or other load on or off.
Can be used alongside mains voltage gridswitches
- Work Type: Push Button
- Power Source: Micro Energy Acquisition and self-powered
- Communication Model: FSK
- Work Frequency: 433Hz
- Number of Keys: 1 (1 gang)
- Life Time: 200,000 times on/off
- Control Distance: 30m (indoor)
- Control Method: Pairing with Quinetic Wireless Controller
- Compatible with Click MiniGrid Plates
- 3 Year Warranty
- The QUGDCL is compatible with the Click Mode MiniGrid system and can be installed into any Click Mode MiniGrid plates.
- Whether you require any switches within the grid to be transformed in to 2, 3, 4 (up to 10 way switching) this is a perfect solution whilst aesthetically looking exactly the same as any of the standard switches you have in the grid.
- It can be used with our standard or dimming Quinetic receiving controllers giving great versatility.
- As is the case with all our Quinetic switches, It has a built-in micro energy generator – which when the switch is pressed the kinetic system transforms the movement into energy.
- This transmits a signal to the receiver to turn the lamp or other load on or off.
| See product for Accessories and Quinetic Receivers |
Technical:QUGDCL Datasheet 1.8mb - pdf QUGDCL Instructions 1.6mb - pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Quinetic Wireless Grid Switch - White - Compatible with Hager Grid
Loading …
Not for sale to Germany
See product for Accessories and Quinetic Receivers
Quinetic
Wireless Grid Switch - Compatible with Hager Grid
White
Wireless Grid Switch - Compatible with Hager Grid
White
The Quinetic wireless grid switch is compatible with the Hager Sollysta range grid system
and can be installed into Hager Sollysta grid plates.
It can be used with the standard or with the dimming Quinetic receiving controller.
It has a built-in micro energy generator - when the switch is
pressed the kinetic system transforms the movement into energy.
This transmits a signal to the receiver
to turn the lamp or other load on or off.
This solves the issue of having to install switch wiring
which has been a problem ever since the invention of the lamp.
Can be used alongside mains voltage grid switches.
No Wiring. No Battery. Easy installation and usage.
and can be installed into Hager Sollysta grid plates.
It can be used with the standard or with the dimming Quinetic receiving controller.
It has a built-in micro energy generator - when the switch is
pressed the kinetic system transforms the movement into energy.
This transmits a signal to the receiver
to turn the lamp or other load on or off.
This solves the issue of having to install switch wiring
which has been a problem ever since the invention of the lamp.
Can be used alongside mains voltage grid switches.
No Wiring. No Battery. Easy installation and usage.
- Work type: Push button
- Power source: Micro Energy Acquisition and self-powered
- Communication model: FSK
- Work frequency: 433Hz
- Number of keys: 1 (1 gang)
- Lifetime: 100,000 times on/off
- Weight: 25g
- Work environment temperature: -20°C to 55°C
- Control distance: 25m (indoor)
- Control method: pairing with Quinetic Wireless Controller
- Compatible with Hager Sollysta Grid Switch Plates
- 3 Year warranty
| See product for Accessories and Quinetic Receivers |
Technical:QUGDHG Datasheet - 1.9mb pdf QUGDHG Instructions - 1.6mb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Quinetic PIR Internal & External - IP65
Loading …
QU PIRB
QU PIRW
Watch VideoDimensions:
Body diameter: Ø45mm
Height (fully upright): 88mm
Base diameter: Ø55mm
Body diameter: Ø45mm
Height (fully upright): 88mm
Base diameter: Ø55mm
See product for Replacement Batteries, Accessories and Receivers
Quinetic PIR
Internal & External - IP65
Internal & External - IP65
The new QUPIRB features an ergonomic design and enhanced detection range. When paired with a Quinetic controller, it enables automatic lighting control - turning the lamp on when it detects human presence and off when no presence is detected.
The sensor includes adjustable settings for lux level, timing and detection distance, and it boasts IP65 weatherproof protection,
making it ideal for both indoor and outdoor use.
Its customisable PIR settings offer flexible and convenient control of lighting in various environments.
The sensor includes adjustable settings for lux level, timing and detection distance, and it boasts IP65 weatherproof protection,
making it ideal for both indoor and outdoor use.
Its customisable PIR settings offer flexible and convenient control of lighting in various environments.
- Switch type: PIR sensor
- Power supply: 1 x CR2450 battery (included)
- Battery life: Up to 3 years (red LED indicator for low battery)
- Communication frequency: RF 433MHz
- Control distance: Up to 80m outdoors / 30m indoors
- Detection angle: 120°
- Detection distance: Up to 8m
- Pairing with Quinetic controlling receiver
- IP65 rated
- Sensitivity range (adjustable): 25%-100%
- Lux level (adjustable): 10-3500lux
- Time range (adjustable): 3 sec to 10 min.
- Operating temperature: -10°C to 45°C
- Working humidity: 10% to 95% RH
- Adjustable bracket mounting
- 3 year warranty (excluding battery)
Watch VideoDimensions:
Body diameter: Ø45mm
Height (fully upright): 88mm
Base diameter: Ø55mm
Body diameter: Ø45mm
Height (fully upright): 88mm
Base diameter: Ø55mm
- See each product
| See product for Replacement Batteries, Accessories and Receivers |
Technical:See each product |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Quinetic - Recessed & Surface Mounted PIR
Loading …
QU CP
QU CPB
Diameter: 90mm
Cut-out: 75mm
Surface dimensions:
Diameter: 69mm
Projection: 44mm
See product for Replacement Batteries, Accessories and Receivers
Quinetic
Recessed & Surface Mounted PIR
Recessed & Surface Mounted PIR
This ceiling-mounted, infrared motion sensor can either be embedded in the ceiling or mounted on a flat surface, making installation flexible and versatile, and is powered by a CR123A battery (or can be wired for AC power).
Once the ceiling PIR is paired with a Quinetic wireless receiver, it can turn ON the light/load by wireless control
upon detection of a presence, and turn OFF the light/load once no presence is detected.
The sensor comes ready to be recess mounted. If the ceiling mounted version of the sensor is required,
the PIR can be separated from the recessed base by pressing the buckles at both ends of the base to detach it.
This sensor solution is suitable for use in homes, classrooms, offices, warehouses
or other places where automatic control of lighting is needed.
Once the ceiling PIR is paired with a Quinetic wireless receiver, it can turn ON the light/load by wireless control
upon detection of a presence, and turn OFF the light/load once no presence is detected.
The sensor comes ready to be recess mounted. If the ceiling mounted version of the sensor is required,
the PIR can be separated from the recessed base by pressing the buckles at both ends of the base to detach it.
This sensor solution is suitable for use in homes, classrooms, offices, warehouses
or other places where automatic control of lighting is needed.
- Switch type: PIR sensor
- Power supply: 1 x CR123A battery (included) and/or 200-240V AC
- Battery life: Up to 2 years (red LED indicator for low battery)
- Installation method: Recessed (cut-out Ø75mm) or surface mounted
- Communication frequency: RF 433MHz
- Control distance: Up to 30m
- Control method: Pairing with Quinetic Receiving Controllers
- Sensitivity range: Up to Ø8m
- Lux level (adjustable): 10-2000lux
- Time range (adjustable): 3sec. to 30min.
- Installation height: 2.4-3.6m (8-12ft)
- Detection angle: 360°
- Coverage area: 30m² (324ft²) to 62m² (676ft²)
- Operating temperature: -10°C to 50°C
- Weatherproof rating: IP20 (indoor use only)
- 3 Year warranty
Diameter: 90mm
Cut-out: 75mm
Surface dimensions:
Diameter: 69mm
Projection: 44mm
- See each product
| See product for Replacement Batteries, Accessories and Receivers |
Technical:See each product |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Accessories
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
