ECOAIR SELV Centrifugal Continuous dMEV & Humidistat Boost + Timer
Product Code: SL EA4HLCLV
8413893953384
5210636600
Loading …
158mm x 158mm x 48mm
Soler & Palau
Low Voltage (SELV)
ECOAIR 100mm Centrifugal Continuous dMEV
Humidistat Boost + Timer
Low Voltage (SELV)
ECOAIR 100mm Centrifugal Continuous dMEV
Humidistat Boost + Timer
Range of 100mm low voltage domestic centrifugal extract fans for wall or ceiling installations,
designed to work in accordance with two different operating modes:
- Continuously running operation which can be boosted with external or internal switch, depending on the model
- Intermittent operation with adjustable speed at installation
Fitted with DC motors mounted on silent elastic blocks, the fans deliver incredibly silent running and exceptional performance with stylish features and very low power consumption, 90/260V-50/60Hz, significantly reducing energy costs.
designed to work in accordance with two different operating modes:
- Continuously running operation which can be boosted with external or internal switch, depending on the model
- Intermittent operation with adjustable speed at installation
Fitted with DC motors mounted on silent elastic blocks, the fans deliver incredibly silent running and exceptional performance with stylish features and very low power consumption, 90/260V-50/60Hz, significantly reducing energy costs.
- Voltage input: 17V DC, via transformer
- Min. speed airflow: 15m³/h, 4l/s
- Max. speed airflow: 60m³/h, 17l/s
- Max. absorbed power: 5.6W
- Max. sound pressure level @ 4m: 32dB(A)
- Centrifugal forward curved impeller
- Mounted on silent-elastic-blocks
- For wall or ceiling installation
- IP57 rated
- Class II insulated
- 3 year warranty
- HLC Continuous operation:
The boost operation is activated either by the adjustable integral humidity sensor or by an external switch both with timer - HLC Intermittent operation:

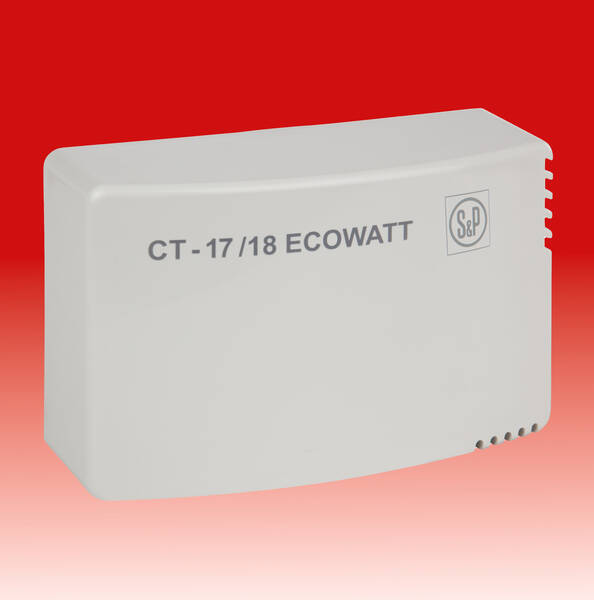

The humidistat causes the extractor to operate automatically when the humidity level in the room is higher than the set level, with the facility to override the hygrostat by means of an external switch. “Interval” functions also integrated - Supplied with IPX4 rated transformer
158mm x 158mm x 48mm
Technical:Instructions - 2.2Mb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
SL EA4HLCLV
ECOAIR SELV Centrifugal Continuous dMEV & Humidistat Boost + Timer |
4 Inch Round Flexible Ducting
Loading …
See product for Accessories
4 Inch Round Flexible Ducting
| See product for Accessories |
Technical:FDTF Datasheet 1.3mb |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
4 Inch Round Ducting and Accessories
Due to a global shortage of white PVC material
We may supply a mix of Grey and White ducting and accessories
See product for Accessories
4 Inch Round Ducting and Accessories
Due to a global shortage of white PVC material
We may supply a mix of Grey and White ducting and accessories
| See product for Accessories |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
4 Inch Wall Grilles
Loading …
4 Inch Fixed Grilles
Wall / Ceiling
Wall / Ceiling
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
4 Inch (100mm) Fixed Wall Grille c/w Flyscreen
Loading …
4 Inch (100mm) Fixed Wall Grille
c/w Flyscreen
c/w Flyscreen
Grille with fixed louvres and flyscreen for use in ducting systems.
Suitable for wall or ceiling installations in ventilation and extraction setups.
Suitable for wall or ceiling installations in ventilation and extraction setups.
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
4 Inch Wall Grilles with Backdraft Shutter
Loading …
4 Inch Wall Grilles
with Backdraft Shutter
with Backdraft Shutter
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
100mm / 4'' Adjustable Circular Air Diffuser
Loading …
100mm / 4'' Adjustable Circular Air Diffuser
within duct or in-line fans where there is more than one extract point.
Technical:Data Sheet - 375kb Fire Test 345kb pdf |
|
