Xpelair DX100PIR Extractor Fan with PIR (Discontinued)

Please try Xpelair Fans for alternative products.

Xpelair DX100PIR Extractor Fan with PIR501356290844390844AW

Loading …

Air Movement
21 litres per second

Max Wattage: 12w

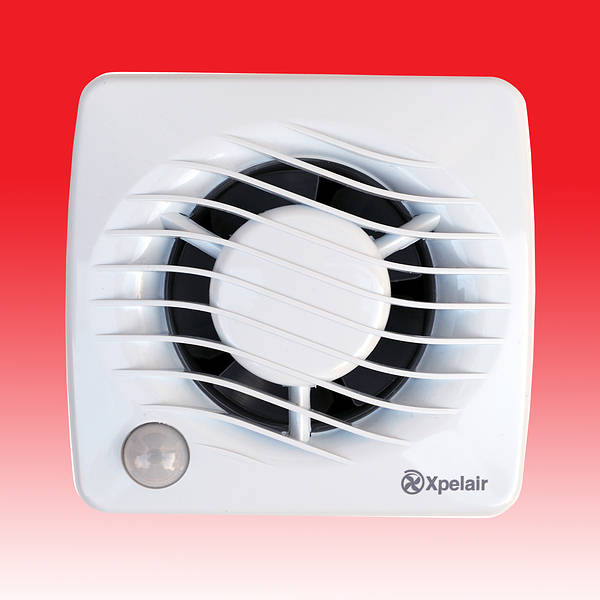

Xpelair DX100PIR 4 inch (100mm) Toilet Extractor Fan
with PIR
With Built-in timer automatically operates fan for a
preset delay of up to 20 minutes.

Suitable for a wide range of domestic applications including bathrooms,
shower rooms and toilets,

Also suitable for commercial applications such as hotel bathrooms, office toilets and other small rooms.

DX100 models have a softly curved flow line grille design which will blend into wall or ceiling décor, whilst the shallow depth of the outlet spigot ensures compact window installation.

Measuring only 165mm x 155mm x 43mm excluding spigot.

  • External grille has gravity back draft shutters
  • W x H x D 165mm x 155mm x 43mm excluding spigot
  • Single speed axial unit with PIR detector
  • Automatic On/Off operation
  • Integral passive infrared sensor
  • Includes universal mounting kit


Installation / User Handbooks / Dimensions
Product Code
Price (ex VAT)
Price (inc VAT)
product photo

Xpelair DX100PIR Extractor Fan with PIR
