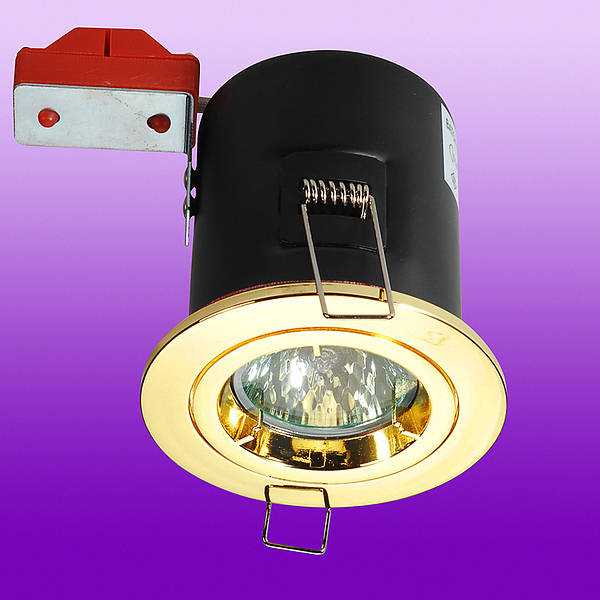

Fire Rated 12v 50w Fixed Downlight - Brass Clearance Stock
Product Code: FR CL02B
5055559112945
VFRCL02B
Loading …
requires 12v Transformer
Dia: 87mm
Hole Size: 72mm
Void: 108mm
Fire Rated ( 90 Minutes ) and Acoustic Compliant Downlighters
12v 50w Downlight - Brass
12v 50w Downlight - Brass
Fire and Acoustic compliant recessed downlighters have been designed
to meet the stringent legal requirements of the Building Regulations Parts B&E.
The recent addition of Part E to the Building Regulations has presented the House Builder with
the problem of how to maintain acoustic integrity yet allow the installation of downlighters,
which by their very nature, must puncture the ceiling lining, which affords acoustic integrity.
The design provides a sealed barrier between the underside of the ceiling and its associated void area.
This clever design also incorporates intumescent materials which ensure the luminaire can withstand the onslaught of fire in accordance with the requirements of Part B of the Building regulations.
Thus from one simple to install luminaire the both regulations can be complied with, negating the need for separate fire hoods or a segregated ceiling void as requested by The Standard Robust Details.
- Rated: IP20
- Designed for use with Halogen lamps
with Aluminium Reflector or LED lamps
Supplied Less Lamp
requires 12v Transformer
Dia: 87mm
Hole Size: 72mm
Void: 108mm
Technical:Detailed Fire Test Report - 2Mb Pdf IP Rating Chart |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
FR CL02B
Fire Rated 12v 50w Fixed Downlight - Brass Clearance Stock |
Electronic Transformers 240v to 12v
Loading …
TL ET60 with tails ( shown )
See product for Accessories
Electronic Transformers
installation through the luminaire aperture. ( except mini downlights )
Built-in Auto re-setting thermal and overload cut out.
TL ET60 with tails ( shown )
- See each product
| See product for Accessories |
Technical:See each product |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Premium Electronic Lighting Transformer 0w - 50w Special Offer |
|
Premium Electronic Lighting Transformer 0w - 70w Special Offer |
|
Electronic Lighting Transformer 20w - 60w Special Offer |
MR16 High Power COB LED Lamps
Loading …
30000 hr
*This is a calculation not a guarantee
Approx Light Output
50W MR16 Halogen = 580lm
LTMRC7NW = 648lm
LTMRC7W = 690lm
LTMRC7WW = 600lm
See product for Accessories
LEDlite
MR16 High Power COB LED Lamps
Next Generation
MR16 High Power COB LED Lamps
Next Generation
so you can directly replace your older, inefficient halogen lamps.
Suitable for indoor or outdoor use in spotlights or downlighters.
Producing a super bright light, in warm white, neutral white and daylight
these are the ultimate energy saving lamps.
Creating negligible heat they can last up to 15 times longer than halogen equivalents.
LED lamps use a fraction of the energy cost
of regular halogen lamps and will more than pay for themselves.
Use with an existing Lv Transformer
(subject to transformer minimum wattage requirement)
Premium transformers such as our LTYT range have a minimum work load of zero watts
an LED Driver is not required
To Dim use Dimming driver/transformer and Silent trailing edge LED dimmers
30000 hr
*This is a calculation not a guarantee
Approx Light Output
50W MR16 Halogen = 580lm
LTMRC7NW = 648lm
LTMRC7W = 690lm
LTMRC7WW = 600lm
- See each product
| See product for Accessories |
Technical:See each product |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
6.5w 40° High Power MR16 COB LED - Neutral White New Just Arrived |
|
|
6.5w 40° High Power MR16 COB LED - Daylight White New Just Arrived |
|
|
Premium Electronic Lighting Transformer 0w - 50w Special Offer |
|
|
Premium Electronic Lighting Transformer 0w - 70w Special Offer |
LEDlite Eco 7W LED MR16 Lamp
Loading …
50W 12V Halogen
2 Year Guarantee
Dimensions:
Diameter: 50mm
Height: 53mm
See product for Accessories
LEDlite
Eco 7W LED MR16 Lamp
Eco 7W LED MR16 Lamp
Light output = to 50W Standard MR16 Lamp
The Eco MR16 LED Lamps are exactly the same size as traditional MR16 halogen
lamps, so you can directly replace your older, inefficient lamps.
Suitable for indoor or outdoor use in spotlights or downlighters.
Producing a super bright light in Warm White, Neutral White and Daylight, these are the ultimate energy saving lamps.
Only Dimmable Using V-PRO dimmer and LTYT50 transformer
Creating negligible heat, they can last up to 15 times longer than halogen equivalents.
LED lamps use a fraction of the energy cost of regular halogen lamps and will more than pay for themselves.
50W 12V Halogen
2 Year Guarantee
Dimensions:
Diameter: 50mm
Height: 53mm
| See product for Accessories |
Technical:LTMR7 Datasheet pdf LTYT50 Datasheet |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
Premium Electronic Lighting Transformer 0w - 50w Special Offer |
Accessories
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
73mm Bi-Metal Holesaw --- Price Drop --- |
|
Mandrel for 32 to 152mm Hole Saws --- Price Drop --- |
|
20A 3 Pin Push Junction Box/Connector (male&female) Special Offer |
|
