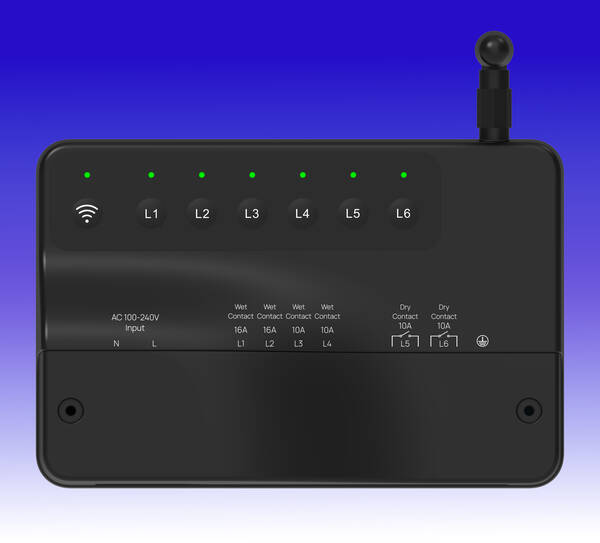

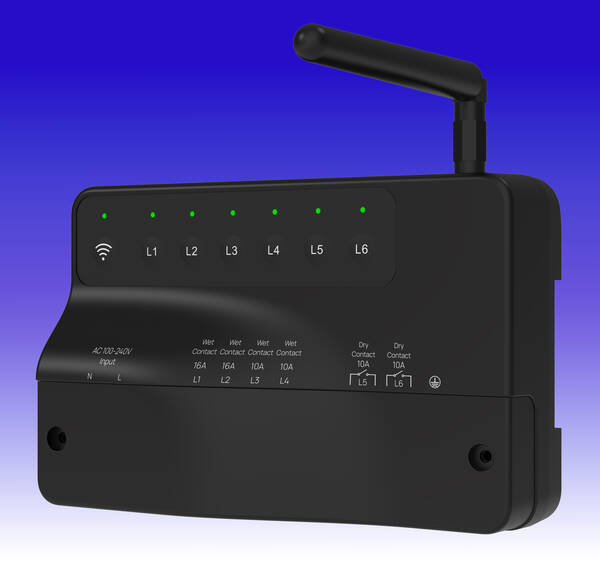

Quinetic 6 Channel WiFi Wireless Receiving Controller
Product Code: QU RW6
5055800111499
QURW6
Loading …
Not for sale to Germany

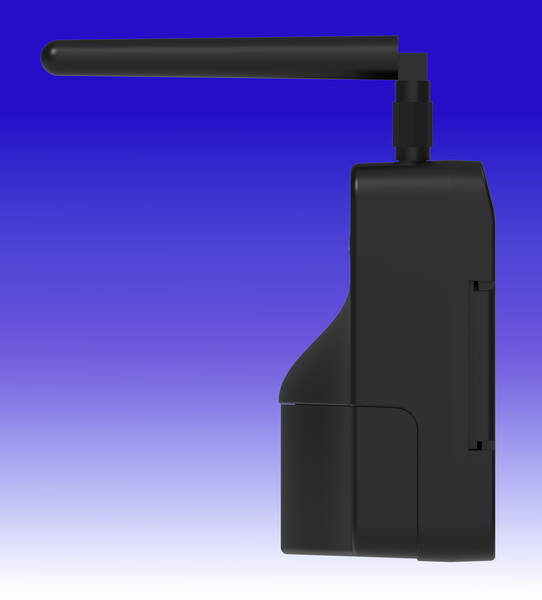

136mm x 90mm x 49mm
Quinetic
6 Channel WiFi Wireless Receiving Controller
6 Channel WiFi Wireless Receiving Controller
The Quinetic QURW6 6 Channel Receiving Controller is a wireless control interface designed for flexible switching of lighting and electrical loads in residential and commercial applications. Operating via RF 433MHz and 2.4GHz WiFi, it enables integration between wireless Quinetic switches and app-based control. The unit provides six independent output channels (four wet contact and two dry contact), supporting a wide range of control requirements. It incorporates multiple pairing modes, scene functionality, and bridging capability to ensure reliable operation across extended distances and complex installations.
Applications include multi-zone lighting control, HVAC and heating switching, relay interfacing for automation systems, retrofit wireless switching, and smart scene-based control of multiple devices within residential, commercial, and light industrial environments. Designed for dependable performance, the QURW6 offers a scalable and energy-efficient solution for modern smart control systems.
Applications include multi-zone lighting control, HVAC and heating switching, relay interfacing for automation systems, retrofit wireless switching, and smart scene-based control of multiple devices within residential, commercial, and light industrial environments. Designed for dependable performance, the QURW6 offers a scalable and energy-efficient solution for modern smart control systems.
- Operating voltage: 100-240V AC, 50/60Hz
- Maximum load: 2 x 16A, 4 x 10A

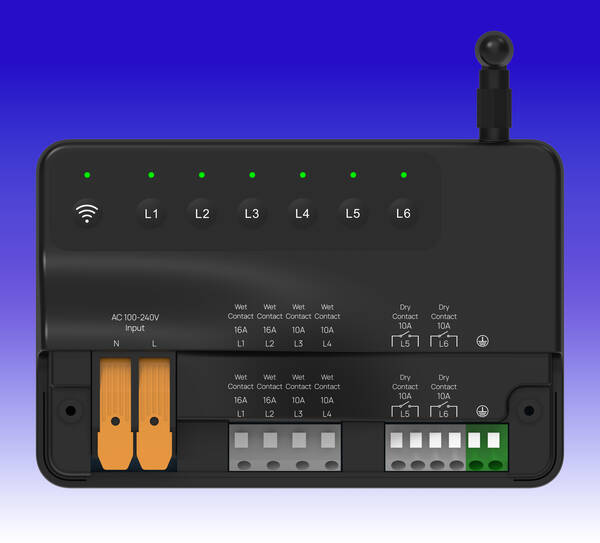

- Output channels: 4 x wet contact, 2 x dry contact
- Working frequency: RF 433MHz & WiFi 2.4GHz
- Control method: WiFi via phone app or RF pairing with Quinetic wireless switch
- Pairing capacity: up to 10 switches per channel
- Non dimmable

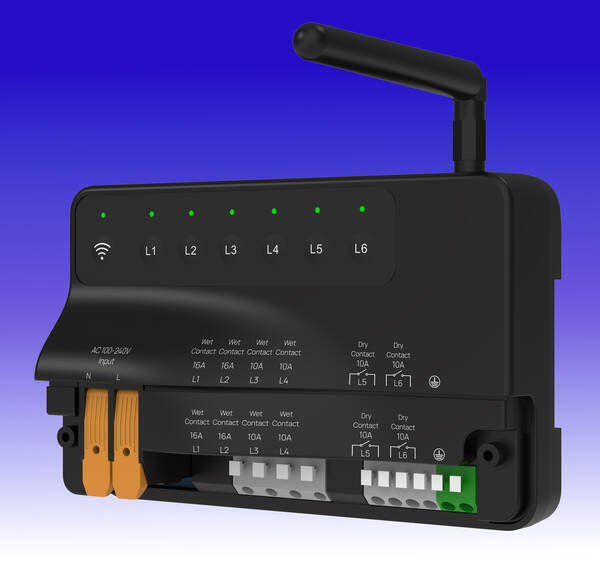

- Push in wiring terminals
- Receiving sensitivity: -110dBm
- Standby power: <0.6W
- IP20 rated
- Working temperature: -20°C to 55°C
- Control distance: 50m outdoor, 30m indoor

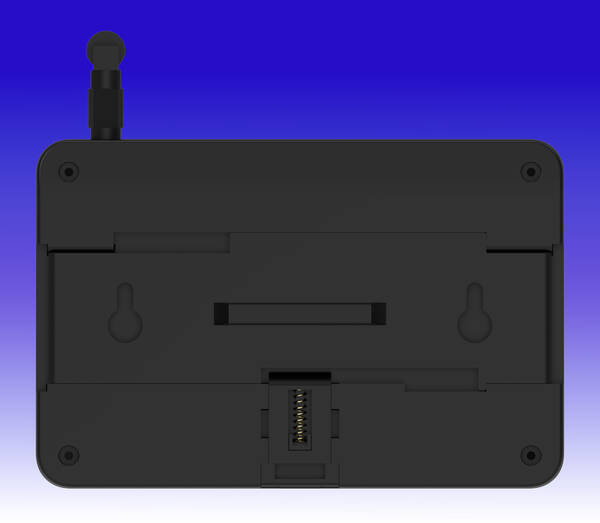

- Installation: surface or DIN rail mounted
- ConfigPro compatible
- 3 year warranty
136mm x 90mm x 49mm
Technical:QURW6 Datasheet - 3.4mb pdf QURW6 Instructions - 2.3mb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
QU RW6
Quinetic 6 Channel WiFi Wireless Receiving Controller |
Quinetic Kinetic Wireless Switches - White - Black - Silver - Grey
Loading …
Not for sale to Germany
QU WS2W
QU WS3W
QU WS1B
QU WS2B
QU WS3B
QU WS1S
QU WS2S
See product for Accessories and Quinetic Receivers
Quinetic
Wireless Switches
Wireless Switches
The latest Quinetic switch design can be used with any receiver including dimming receivers.
Dimming Quinetic Wireless Switch has a formidable range being effective up to 25m indoors, depending on structural conditions.
In addition, 1 to 3 gang switch variants have an IP rating of IP67, giving them ample protection from both dust and rain, allowing them to be used outdoors with a control range of up to 80m.
Innovation of Wireless Kinetic Technology
The Quinetic wireless switch has a built-in micro energy generator.
The action of pressing the switch, generates enough kinetic energy to create and transmit a radio signal
and switch on/off via a receiver (wireless controller) the lamp or other loads.
This solves an age old problem of having to install switch wiring over the past 130 years since
the invention of the light bulb.
No Wiring. No Battery. Easy Installation
Dimming Quinetic Wireless Switch has a formidable range being effective up to 25m indoors, depending on structural conditions.
In addition, 1 to 3 gang switch variants have an IP rating of IP67, giving them ample protection from both dust and rain, allowing them to be used outdoors with a control range of up to 80m.
Innovation of Wireless Kinetic Technology
The Quinetic wireless switch has a built-in micro energy generator.
The action of pressing the switch, generates enough kinetic energy to create and transmit a radio signal
and switch on/off via a receiver (wireless controller) the lamp or other loads.
This solves an age old problem of having to install switch wiring over the past 130 years since
the invention of the light bulb.
No Wiring. No Battery. Easy Installation
- On / Off Switch
- Dimmable when used with Dimmable Switch Receivers
- See each product
| See product for Accessories and Quinetic Receivers |
Technical:See each product |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Quinetic - Wireless Architrave Switch
Loading …
Not for sale to Germany
See product for Accessories, Boxes and Quinetic Receivers
Quinetic
Wireless Architrave Switch
Wireless Architrave Switch
No Wiring. No Battery. Easy Installation and Usage.
The Quinetic wireless architrave switch is compatible with architrave flush and surface boxes.
It can be used with the standard or with the dimming Quinetic receiving controllers.
It has a built-in micro energy generator - when the switch is pressed the kinetic system transforms the movement into energy.
This transmits a signal to the receiver to turn the lamp or other load on or off.
This solves the issue of having to install switch wiring which has been a problem
ever since the invention of the lamp.
A controller can be controlled by a maximum of 10 separate switches, a switch can pair an unlimited number of controllers.
The Quinetic wireless architrave switch is compatible with architrave flush and surface boxes.
It can be used with the standard or with the dimming Quinetic receiving controllers.
It has a built-in micro energy generator - when the switch is pressed the kinetic system transforms the movement into energy.
This transmits a signal to the receiver to turn the lamp or other load on or off.
This solves the issue of having to install switch wiring which has been a problem
ever since the invention of the lamp.
A controller can be controlled by a maximum of 10 separate switches, a switch can pair an unlimited number of controllers.
- Work Type: Push Button
- Power Source: Micro Energy Acquisition and self-powered
- Communication Model: FSK
- Work Frequency: 433Hz
- Number of Keys: 1 (1 gang)
- Life Time: 200,000 times on/off
- Work Environment Temperature: -30°C ~ 55°C
- Control Distance: 30m (indoor)
- Control Method: Pairing with Quinetic Wireless Controller
- Compatible with 1 Gang Architrave flush or surface boxes with 16mm minimum depth
- 3 Year Warranty
- We at Quinetics have yet again found a practical solution to the old age problem of how to run switch cables through architraveing and other awkward installations.
- Our latest design of Quinetic switches is based on a replacement for a standard architrave switch whereby no switch wires nor power is necessary.
- Our latest QU ASW is compatible with standard flush or surface boxes and can be seamlessly paired with one of our Quinetic controllers be it a simple on-off or dimmable solution.
- It has a built-in micro energy generator - when the switch is pressed the kinetic system transforms the movement into energy.
- This transmits a signal to the receiver to turn the lamp or other load on or off.
| See product for Accessories, Boxes and Quinetic Receivers |
Technical:ASW Datasheet 789kb ASW Instructions 1.5Mb |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Quinetic Fob Switches
Loading …
Not for sale to Germany
See product for Accessories and Quinetic Receivers
Quinetic
Wireless Fob Switches
Wireless Fob Switches
The Quinetic wireless key fob switch is portable and very easy to use.
It has a built-in micro energy generator.
When the switch is pressed, the kinetic system transforms the movement into energy.
This transmits a signal to the receiver to turn the lamp or other load on or off.
Solving the issue of having to install switch wiring which has been a problem ever since the invention of the lamp.
No Wiring. No Battery. Easy installation and usage.
The key fob switch is portable and can be used from up to a maximum distance of 80m oudoors or 25m indoors. There is no longer a need to install back boxes, make holes or channel out for switch lines in the wall if you use the Quinetic wireless switch. The Quinetic switch is safe, convenient and extremely simple to install and use.
N.B. Can be used for dimming when combined with a dimmable receiver.
It has a built-in micro energy generator.
When the switch is pressed, the kinetic system transforms the movement into energy.
This transmits a signal to the receiver to turn the lamp or other load on or off.
Solving the issue of having to install switch wiring which has been a problem ever since the invention of the lamp.
No Wiring. No Battery. Easy installation and usage.
The key fob switch is portable and can be used from up to a maximum distance of 80m oudoors or 25m indoors. There is no longer a need to install back boxes, make holes or channel out for switch lines in the wall if you use the Quinetic wireless switch. The Quinetic switch is safe, convenient and extremely simple to install and use.
N.B. Can be used for dimming when combined with a dimmable receiver.
- See each product
| See product for Accessories and Quinetic Receivers |
Technical:See each product |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Quinetic Dimmer Module c/w Knob
Loading …
Not for sale to Germany
See product for Accessories and Receivers
Quinetic
Dimmer Module c/w Knob
Dimmer Module c/w Knob
The Quinetic Wireless Dimmer Module is a push type button switch (not rotary)
with an interchangeable knob, compatible with most dimmers on the market, offering
high installation flexibilty.
Designed to replace an existing dimmer module with a Quinetic Switch/Dimmer,
whether it be on a standard white plate or a decorative finish.
It can be used as a simple on/off switch when paired with a standard Quinetic receiver,
or can be fully dimmable when paired with a dimming Quinetic receiver.
with an interchangeable knob, compatible with most dimmers on the market, offering
high installation flexibilty.
Designed to replace an existing dimmer module with a Quinetic Switch/Dimmer,
whether it be on a standard white plate or a decorative finish.
It can be used as a simple on/off switch when paired with a standard Quinetic receiver,
or can be fully dimmable when paired with a dimming Quinetic receiver.
| See product for Accessories and Receivers |
Technical:QUDM Datasheet - 2mb pdf QUDM Instructions - 1.5mb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Quinetic Wireless Grid Switch Compatible with New BG Nexus Grid
Loading …
Not for sale to Germany
See product for Accessories and Quinetic Receivers
Quinetic
Wireless Grid Switch
Compatible with New BG Nexus Grid Plates
Wireless Grid Switch
Compatible with New BG Nexus Grid Plates
The Quinetic wireless grid switch is compatible with BG R range Nexus grid system and can be
installed into BG Nexus grid plates.
The switch cover is interchangeable, allowing the usage of any BG R Range Nexus Grid switch cover.
It can be used with the standard or with the dimming
Quinetic receiving controller. It has a built-in micro energy generator
when the switch is pressed the kinetic system transforms the movement into energy.
This transmits a signal to the receiver to turn the lamp or other load on or off.
Can be used along side mains voltage gridswitches
No Wiring. No Battery. Easy installation and usage.
installed into BG Nexus grid plates.
The switch cover is interchangeable, allowing the usage of any BG R Range Nexus Grid switch cover.
It can be used with the standard or with the dimming
Quinetic receiving controller. It has a built-in micro energy generator
when the switch is pressed the kinetic system transforms the movement into energy.
This transmits a signal to the receiver to turn the lamp or other load on or off.
Can be used along side mains voltage gridswitches
No Wiring. No Battery. Easy installation and usage.
- Work Type: Push Button
- Power Source: Micro Energy Acquisition and self-powered
- Communication Model: FSK
- Work Frequency: 433Hz
- Number of Keys: 1 (1 gang)
- Life Time: 200,000 times on/off
- Control Distance: 30m (indoor)
- Control Method: Pairing with Quinetic Wireless Controller
- Compatible with BG Nexus Grid Plates
- 3 Year Warranty
- The QUGDBG is compatible with The BG Nexus grid system and can be installed into any BG Nexus grid plates.
- The switch cover is interchangeable, thus allowing one to utilize any BG Nexus Grid switch covers for a great colour changing solution. Whether you require any switches within the grid to be transformed in to 2, 3, 4 (up to 10 way switching) this is a perfect solution whilst aesthetically looking exactly the same as any of the standard switches you have in the grid.
- It can be used with our standard or dimming Quinetic receiving controllers giving great versatility.
- As is the case with all our Quinetic switches, It has a built-in micro energy generator – which when the switch is pressed the kinetic system transforms the movement into energy.
- This transmits a signal to the receiver to turn the lamp or other load on or off.
| See product for Accessories and Quinetic Receivers |
Technical:GDBG Datasheets 2.5Mb GDBG Instructions 1.4Mb |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Quinetic Grid Switch - Compatible with MK Logic Style
Loading …
Not for sale to Germany
See product for Accessories and Quinetic Receivers
Quinetic
Wireless Grid Switch
Compatible with MK Logic Grid
Wireless Grid Switch
Compatible with MK Logic Grid
The Quinetic wireless grid switch is compatible with MK grid plus system
and can be installed into MK grid plus plates.
It can be used with the standard or with the dimming Quinetic receiving controller.
It has a built-in micro energy generator - when the switch is
pressed the kinetic system transforms the movement into energy.
This transmits a signal to the receiver
to turn the lamp or other load on or off.
This solves the issue of having to install switch wiring
which has been a problem ever since the invention of the lamp.
Can be used along side mains voltage gridswitches
No Wiring. No Battery. Easy installation and usage.
and can be installed into MK grid plus plates.
It can be used with the standard or with the dimming Quinetic receiving controller.
It has a built-in micro energy generator - when the switch is
pressed the kinetic system transforms the movement into energy.
This transmits a signal to the receiver
to turn the lamp or other load on or off.
This solves the issue of having to install switch wiring
which has been a problem ever since the invention of the lamp.
Can be used along side mains voltage gridswitches
No Wiring. No Battery. Easy installation and usage.
- Work Type: Push Button
- Power Source: Micro Energy Acquisition and self-powered
- Communication Model: FSK
- Work Frequency: 433Hz
- Number of Keys: 1 (1 gang)
- Life Time: 200,000 times on/off
- Control Distance: 30m (indoor)
- Control Method: Pairing with Quinetic Wireless Controller
- Compatible with MK Logic Grid Plates
- 3 Year Warranty
- See each product
| See product for Accessories and Quinetic Receivers |
Technical:See each product |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Quinetic Grid Switch Compatible with Varilight Powergrid
Loading …
Not for sale to Germany
QU GDVLB
QU GDVLCH
QU GDVLSS
See product for Accessories and Quinetic Receivers
Quinetic
Wireless Grid Switch
Compatible with Varilight PowerGrid
Wireless Grid Switch
Compatible with Varilight PowerGrid
The Quinetic wireless grid switch is compatible with Varilight Powergrid system
and can be installed into Varilight Powergrid plates.
It can be used with the standard or with the dimming Quinetic receiving controller.
It has a built-in micro energy generator - when the switch is
pressed the kinetic system transforms the movement into energy.
This transmits a signal to the receiver
to turn the lamp or other load on or off.
This solves the issue of having to install switch wiring
which has been a problem ever since the invention of the lamp.
Can be used along side mains voltage gridswitches
No Wiring. No Battery. Easy installation and usage.
and can be installed into Varilight Powergrid plates.
It can be used with the standard or with the dimming Quinetic receiving controller.
It has a built-in micro energy generator - when the switch is
pressed the kinetic system transforms the movement into energy.
This transmits a signal to the receiver
to turn the lamp or other load on or off.
This solves the issue of having to install switch wiring
which has been a problem ever since the invention of the lamp.
Can be used along side mains voltage gridswitches
No Wiring. No Battery. Easy installation and usage.
- Work Type: Push Button
- Power Source: Micro Energy Acquisition and self-powered
- Communication Model: FSK
- Work Frequency: 433Hz
- Number of Keys: 1 (1 gang)
- Life Time: 200,000 times on/off
- Control Distance: 30m (indoor)
- Control Method: Pairing with Quinetic Wireless Controller
- Compatible with Varilight Powergrid Plates
- 3 Year Warranty
| See product for Accessories and Quinetic Receivers |
Technical:FAQ's QUGDV Datasheets 1.2Mb QUGDV Instructions 600kb |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Quinetic Wireless Grid Switch Compatible with Click Mode MiniGrid
Loading …
Not for sale to Germany
See product for Accessories and Quinetic Receivers
Quinetic
Wireless Grid Switch
Compatible with Click Mode MiniGrid
Polar White
Wireless Grid Switch
Compatible with Click Mode MiniGrid
Polar White
The Quinetic wireless grid switch is compatible with Click Mode MiniGrid system and can be
installed into Click Mode MiniGrid plates.
It can be used with the standard or with the dimming receivers
Quinetic receiving controller. It has a built-in micro energy generator
when the switch is pressed the kinetic system transforms the movement into energy.
This transmits a signal to the receiver to turn the lamp or other load on or off.
Can be used alongside mains voltage gridswitches
installed into Click Mode MiniGrid plates.
It can be used with the standard or with the dimming receivers
Quinetic receiving controller. It has a built-in micro energy generator
when the switch is pressed the kinetic system transforms the movement into energy.
This transmits a signal to the receiver to turn the lamp or other load on or off.
Can be used alongside mains voltage gridswitches
- Work Type: Push Button
- Power Source: Micro Energy Acquisition and self-powered
- Communication Model: FSK
- Work Frequency: 433Hz
- Number of Keys: 1 (1 gang)
- Life Time: 200,000 times on/off
- Control Distance: 30m (indoor)
- Control Method: Pairing with Quinetic Wireless Controller
- Compatible with Click MiniGrid Plates
- 3 Year Warranty
- The QUGDCL is compatible with the Click Mode MiniGrid system and can be installed into any Click Mode MiniGrid plates.
- Whether you require any switches within the grid to be transformed in to 2, 3, 4 (up to 10 way switching) this is a perfect solution whilst aesthetically looking exactly the same as any of the standard switches you have in the grid.
- It can be used with our standard or dimming Quinetic receiving controllers giving great versatility.
- As is the case with all our Quinetic switches, It has a built-in micro energy generator – which when the switch is pressed the kinetic system transforms the movement into energy.
- This transmits a signal to the receiver to turn the lamp or other load on or off.
| See product for Accessories and Quinetic Receivers |
Technical:QUGDCL Datasheet 1.8mb - pdf QUGDCL Instructions 1.6mb - pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Quinetic Wireless Grid Switch Compatible with Knightsbridge Grid
Loading …
QU GDGD
Watch Video
See product for Accessories
Quinetic
Grid Switch - MLA Knightsbridge (compatible)
Grid Switch - MLA Knightsbridge (compatible)
The Kinetic wireless grid switch is compatible with Knightsbridge range grid system and can be installed into Knightsbridge grid plates.
The switch cover is interchangeable, allowing the usage of any Knightsbridge Grid switch cover.
It can be used with the standard or with the dimming Quinetic receiving controller.
It has a built-in micro energy generator - when the switch is pressed the kinetic system transforms the movement into energy - This transmits a signal to the receiver to turn the lamp or other load on or off.
The grid switch can be used from a maximum 30m indoors.
There is no longer a need to make holes or channel out for switch lines in the wall if you use the Quinetic wireless switch.
The Quinetic switch is safe, convenient and extremely simple to install and use.
The switch cover is interchangeable, allowing the usage of any Knightsbridge Grid switch cover.
It can be used with the standard or with the dimming Quinetic receiving controller.
It has a built-in micro energy generator - when the switch is pressed the kinetic system transforms the movement into energy - This transmits a signal to the receiver to turn the lamp or other load on or off.
The grid switch can be used from a maximum 30m indoors.
There is no longer a need to make holes or channel out for switch lines in the wall if you use the Quinetic wireless switch.
The Quinetic switch is safe, convenient and extremely simple to install and use.
- The QUGDGD is compatible with the Knightsbridge Grid system and can be installed into any Knightsbridge Grid plates.
- Whether you require any switches within the grid to be transformed in to 2, 3, 4 (up to 10 way switching) this is a perfect solution whilst aesthetically looking exactly the same as any of the standard switches you have in the grid.
- It can be used with our standard or dimming Quinetic receiving controllers giving great versatility.
- As is the case with all our Quinetic switches, It has a built-in micro energy generator – which when the switch is pressed the kinetic system transforms the movement into energy.
- This transmits a signal to the receiver to turn the lamp or other load on or off.
- Work Type: Push Button
- Power Source: Micro Energy Acquisition and self-powered
- Communication Model: FSK
- Work Frequency: 433Hz
- Number of Keys: 1 (1 gang)
- Life Time: 200,000 times on/off
- Control Distance: 30m (indoor)
- Control Method: Pairing with Quinetic Wireless Controller
- 3 Year Warranty
Watch Video
| See product for Accessories |
Technical:QUGDGD Datasheet 2.2mb - pdf QUGDGD Instructions 1.4mb - pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Quinetic Door Switches
Loading …
Not for sale to Germany
QU DSW
Length: 47.5mm
Width: 148.68mm
Height: 55.55mm
Watch Video
Watch Video
Watch Video
See product for Accessories and Quinetic Receivers
Quinetic
Wireless Door Switches
Wireless Door Switches
Requires a Quinetic Wireless Receiver
The Quinetic wireless door switch was designed for a easy trigger of lights
when a door is opened or closed. Simply pair the door contact switch
with the Quinetic wireless receiver, to control the lights inside the cabinets
Use with standard doors, sliding doors, drawers, etc.
The Quinetic wireless door switch was designed for a easy trigger of lights
when a door is opened or closed. Simply pair the door contact switch
with the Quinetic wireless receiver, to control the lights inside the cabinets
Use with standard doors, sliding doors, drawers, etc.
- Control Method: Pairing with Quinetic Wireless Receiver.
- Life Time: =100000 times.
- Installation method: surface mounted with screws.
- Work Environment Temperature: -200 0 C ~55 C.
- Push Type Button.
- Power Source: Micro energy acquisition and self generating (no battery required).
- Control Distance*: 25m (indoor).
- Work Frequency: 433Hz.
Length: 47.5mm
Width: 148.68mm
Height: 55.55mm
Watch Video
Watch Video
Watch Video
| See product for Accessories and Quinetic Receivers |
Technical:QUDS Datasheet - 1.2mb pdf QUDS Instructions - 1.5mb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
