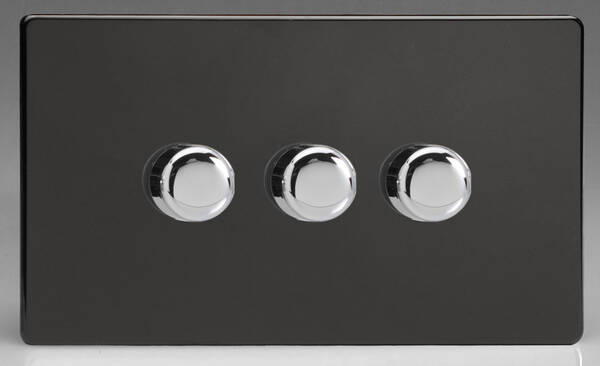

3 Gang Dimmer Plate Kit (Twin Plate) - Piano Black
Product Code: VL WDLD3S
5021575008067
WDLD3S
Loading …
Dimmer Kit with Modules Fitted
Piano Black
3 Gang Dimmer Plate Kit
3 Gang Dimmer Plate Kit
The Matrix kits allow you to purchase dimmer plates and modules separately,
enabling you to combine different dimmers on one dimmer plate.
c/w Matching Knob(s), Plate Screws, Fixing Nut(s) and Non Metalic Fixing Tool
Add dimmer modules and switches (see below)
Quick and easy to assemble
enabling you to combine different dimmers on one dimmer plate.
c/w Matching Knob(s), Plate Screws, Fixing Nut(s) and Non Metalic Fixing Tool
Add dimmer modules and switches (see below)
Quick and easy to assemble
-
3 Gang Plate Kit (S & M Modules)
Max Kit Load LED 600w - Halogen 1200w
-
Other Plate Options
1 Gang Plate Kit (S,M & L Modules)
Max Plate Kit Load LED 400w - Halogen 1000w - 2 Gang Plate Kit (S Modules)
Max Kit Load LED 600w - Halogen 1200w - 4 Gang Plate Kit (S Modules)
Max Kit Load LED 600w - Halogen 1200w - 1 Gang Twin Plate Kit (S,M, L & XL Modules)
Max Kit Load LED 400w - Halogen 1000w - 2 Gang Twin Plate Kit (S,M & L Modules)
Max Kit Load LED 600w - Halogen 1200w
Technical:VLWDLD3S Datasheet |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
VL WDLD3S
3 Gang Dimmer Plate Kit (Twin Plate) - Piano Black |
V-PRO Smart Dimmer Modules
Loading …
VL MJM100
Loading …
V-PRO Smart
Dimmer Module 100W LED Master and Slave
Dimmer Module 100W LED Master and Slave
Full dimming control from every dimmer location.
Traditional rotary style dimming with multi-position switching when used with supplementary slave controllers.
Professional Trailing-Edge Dimmers (V-Pro).
Our most versatile dimmer switch.
High quality UK design and manufacture.
Trailing edge for smooth, totally silent dimming.
Intelligent detection of the lamp type for adaptive control of most loads.
Overload protection. Superb performance with most dimmable LED lamps.
Soft start and gentle waveform to considerably extend lamp life
Traditional rotary style dimming with multi-position switching when used with supplementary slave controllers.
Professional Trailing-Edge Dimmers (V-Pro).
Our most versatile dimmer switch.
High quality UK design and manufacture.
Trailing edge for smooth, totally silent dimming.
Intelligent detection of the lamp type for adaptive control of most loads.
Overload protection. Superb performance with most dimmable LED lamps.
Soft start and gentle waveform to considerably extend lamp life
- See each product
Technical:See each product |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
V-DIM Dimmer Switch Module
Loading …
VL MTP250
See product for Accessories
V-DIM
Dimmer Switch Module
Size S & M
Dimmer Switch Module
Size S & M
V-DIM is best suited for Incandescent GLS filament lamps
Suitable for Incandescent, mains and low voltage halogen loads.
Thermal overload protection
Senses an overload of heat and temporarily shuts the dimmer down to protect it.
2 Versions
Rotary On/Off and Rotary Dim
Push On/Off and Rotary Dim
Suitable for Incandescent, mains and low voltage halogen loads.
Thermal overload protection
Senses an overload of heat and temporarily shuts the dimmer down to protect it.
2 Versions
Rotary On/Off and Rotary Dim
Push On/Off and Rotary Dim
- See each product
| See product for Accessories |
Technical:See each product |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
V-COM LED Dimmer Switch Module
Loading …
VL MKP100
See product for Accessories
V-COM
LED Dimmer Switch Module
Size S & M
LED Dimmer Switch Module
Size S & M
V-Com is suitable for LED lamps
Great value V-Com, leading edge push on/off 2 way LED dimmer module.
Can also be used for Incandescent and halogen loads up to max wattage shown
Choose V-Com for LEDs specifying triac dimmer control.
Please check Minimum Load
Great value V-Com, leading edge push on/off 2 way LED dimmer module.
Can also be used for Incandescent and halogen loads up to max wattage shown
Choose V-Com for LEDs specifying triac dimmer control.
Please check Minimum Load
- See each product
| See product for Accessories |
Technical:See each product |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
V-PRO Silent Trailing Edge & LED Dimmer Module
Loading …
See product for Accessories
V-PRO
Silent Trailing Edge & LED Dimmer Module
Silent Trailing Edge & LED Dimmer Module
Our most versatile dimmer switch.
High quality UK design and manufacture.
Trailing edge for smooth, totally silent dimming.
Intelligent detection of the lamp type for adaptive control of most loads.
Overload protection. Superb performance with most dimmable LED lamps.
Soft start and gentle waveform to considerably extend lamp life
- See each product
| See product for Accessories |
Technical:See each product |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
V-PRO Smart Master WiFi Dimmer Module 100W LED - (Multi-Way with up to 2 Supplementary Controllers)
Loading …
VL MJSM100
Loading …
50 x 41 x 45mm.
See product for Accessories
V-PRO Smart Master WiFi Dimmer Module 100W LED
(Multi-Way with up to 2 Supplementary Controllers)
(Multi-Way with up to 2 Supplementary Controllers)
Only suitable for use on 1-Gang and 3-Gang Matrix Dimmer Plates
(Can also be used on White Plastic 2-Gang Matrix Kits - WQ2W).
Simply connect to the Supla app on your smart device to control the dimmer
from your screen at home or away for added security and power saving.
Compatible with Google Home or Alexa to dim your lights with your smart assistant.
(Can also be used on White Plastic 2-Gang Matrix Kits - WQ2W).
Simply connect to the Supla app on your smart device to control the dimmer
from your screen at home or away for added security and power saving.
Compatible with Google Home or Alexa to dim your lights with your smart assistant.
- Ideal for home users, with V-Pro Smart control for intuitive dimming and smart assistant integration.
- Traditional rotary dimming with Multi-Way operation when used with supplementary controllers, with direct programming functionality from the Supla app for easy setup.
- Suitable for all 1-Gang and 3-Gang Matrix Plates, and White Plastic 2-Gang Matrix Kits.
- Maximum Load Rating: LED; 100W (Max. 10 LEDs).
- Maximum Current Rating: 0.4A.
- Not suitable for motors or fans - Do not overload.
- Indoor Use Only - Domestic electrical circuits.
50 x 41 x 45mm.
| See product for Accessories |
Technical:V-PRO Smart Instructions - pdf 290k VLMJS Datasheet VLMJSM100 Datasheet |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
V-PLUS Dimmer Switch Modules
Loading …
VL MIP302
V-PLUS
Dimmer Switch Modules
Size S & M
Dimmer Switch Modules
Size S & M
These “IQ” dimmers are microprocessor controlled and benefit form the following features:
They fully comply with European safety legislation (BSEN 60669-2-1)
and handle overload situations by stepping down its output to the lamps until the load is reduced.
These dimmers are suitable for all applications requiring a leading edge dimmer.
The output from the dimmer switch is extremely gentle on the load and they are soft-start, thus extending lamp life considerably.
These dimmer switches are suitable for many types of load (subject to lamp/transformer manufacturers guidelines).
One dimmer for either mains or low voltage transformer loads
- See each product
Technical:See each product |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
1-10v 2W Dimmer Module
Loading …
VL MFP1M
1-10v 2W Dimmer Module (replace a Std Dimmer)
for Multiple Ballasts/Drivers
for Multiple Ballasts/Drivers
This dimmerswitch is designed for high frequency
dimmable ballasts that require a 0–10V or 1–10V control signal.
dimmable ballasts that require a 0–10V or 1–10V control signal.
Technical:Dimmer Selection Guide - pdf 180k HF Ballast Dimmer Instructions - pdf 180k VLMFP1M Datasheet |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Varilight White Switch Module Only for VL range
Loading …
VL SM
VL MPINT
See product for Accessories
Varilight
White Switch Module Only
for VL range
White Switch Module Only
for VL range
and replace it with a push On / Off switch without a dimmer function
| See product for Accessories |
Technical:VLMPINT Datasheet VLSM Datasheet |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Quinetic Dimmer Module c/w Knob
Loading …
Not for sale to Germany
See product for Accessories and Receivers
Quinetic
Dimmer Module c/w Knob
Dimmer Module c/w Knob
The Quinetic Wireless Dimmer Module is a push type button switch (not rotary)
with an interchangeable knob, compatible with most dimmers on the market, offering
high installation flexibilty.
Designed to replace an existing dimmer module with a Quinetic Switch/Dimmer,
whether it be on a standard white plate or a decorative finish.
It can be used as a simple on/off switch when paired with a standard Quinetic receiver,
or can be fully dimmable when paired with a dimming Quinetic receiver.
with an interchangeable knob, compatible with most dimmers on the market, offering
high installation flexibilty.
Designed to replace an existing dimmer module with a Quinetic Switch/Dimmer,
whether it be on a standard white plate or a decorative finish.
It can be used as a simple on/off switch when paired with a standard Quinetic receiver,
or can be fully dimmable when paired with a dimming Quinetic receiver.
| See product for Accessories and Receivers |
Technical:QUDM Datasheet - 2mb pdf QUDM Instructions - 1.5mb pdf |
|
