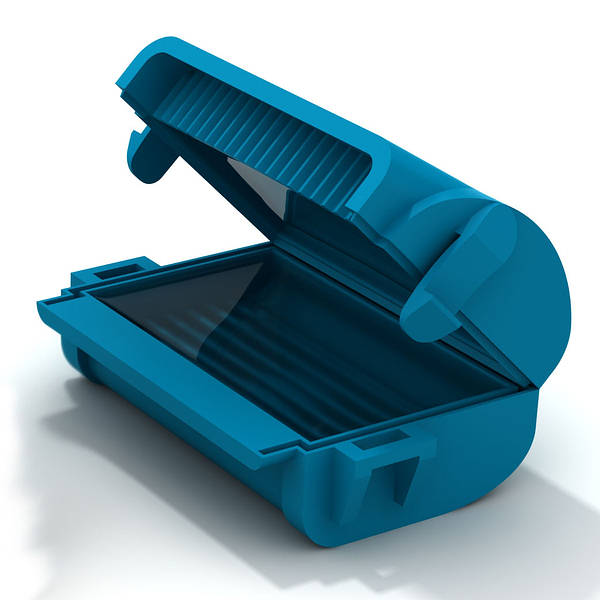

WISKA Shellbox Mini Gel Insulated Boxes
Loading …
WK MJB1
WK MJB2
WK MJB3
See product for Accessories
WISKA Shellbox
Mini Gel Insulated Boxes
Mini Gel Insulated Boxes

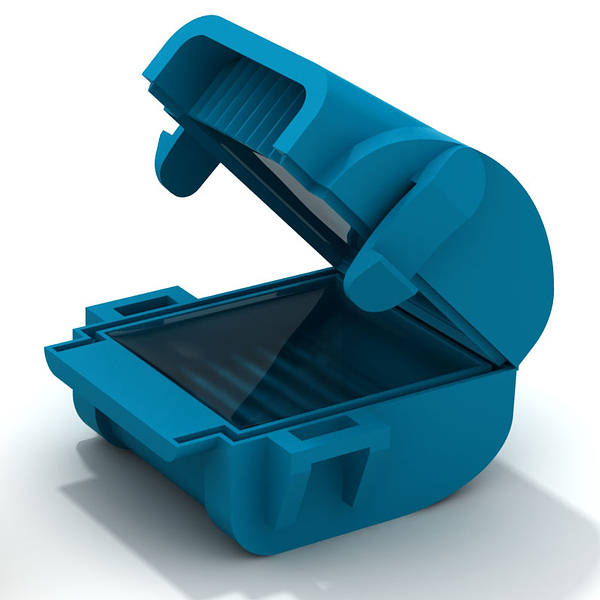

WISKA Shellbox- Mini Gel Insulated Boxes
Drawing on WISKA's gel and insulated joint experience,
WISKA have launched the SHELLBOX Mini Gel Insulated Junction Box range.
The fast and easy solution to protect and insulate connections with up to five wires on the same phase.
Three sizes of small gel insulated snap enclosure junction boxes.
Drawing on WISKA's gel and insulated joint experience,
WISKA have launched the SHELLBOX Mini Gel Insulated Junction Box range.
The fast and easy solution to protect and insulate connections with up to five wires on the same phase.
Three sizes of small gel insulated snap enclosure junction boxes.
- IP X8 (Protected against long periods of immersion under pressure)
- Best used with Wago Connectors
| See product for Accessories |
Technical:IP Rating Chart |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|

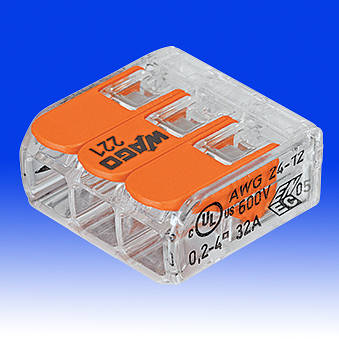

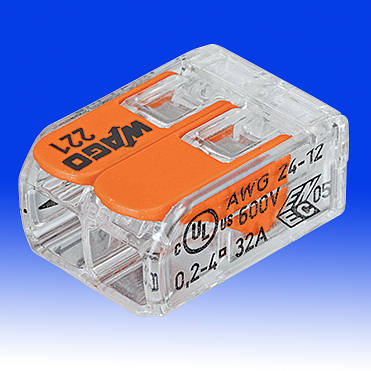

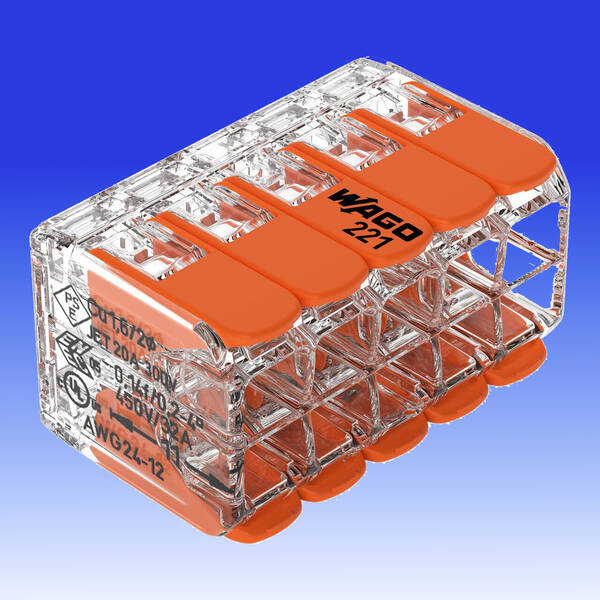

Wago 221 Compact Lever Splicing Connector
Loading …
WA 412C
WA 413C
WA 415C
WA420C
See product for Accessories, Connectors and Fixing Screws
Wago 221Compact Series
Compact Lever Splicing Connector
0.5m - 4.00mm - 2, 3, 5 & 10 conductor terminal block
Compact Lever Splicing Connector
0.5m - 4.00mm - 2, 3, 5 & 10 conductor terminal block
2, 3, 5 & 10 conductor terminal block; with operating levers;
Max. operating temperature 85°C
The WAGO 221 Series compact lever connector allows fast wiring for solid,
stranded & flexible conductors safely due to CAGE CLAMP connection
Suitable applications:
Lighting, Power, HVAC & many more
- See each product
| See product for Accessories, Connectors and Fixing Screws |
Technical:See each product |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|

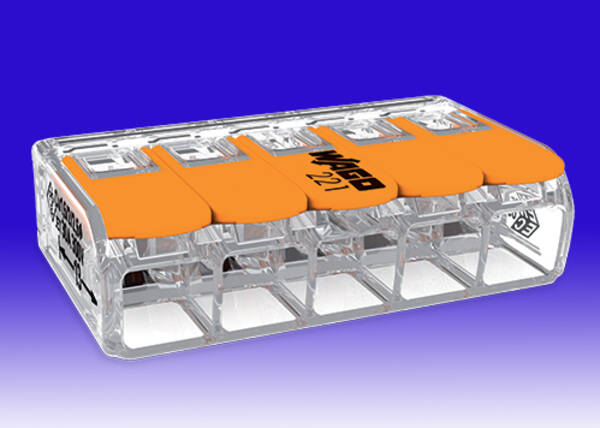

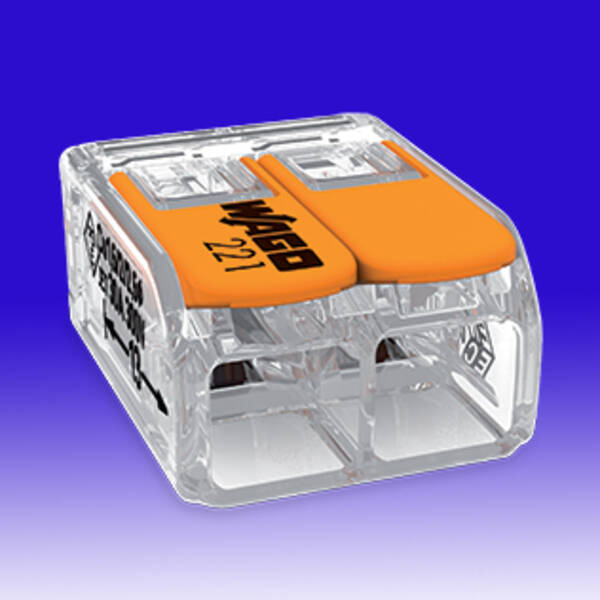

Wago 221 Compact Lever Splicing Connector
Loading …
WA 612C
WA 613C
WA 615C

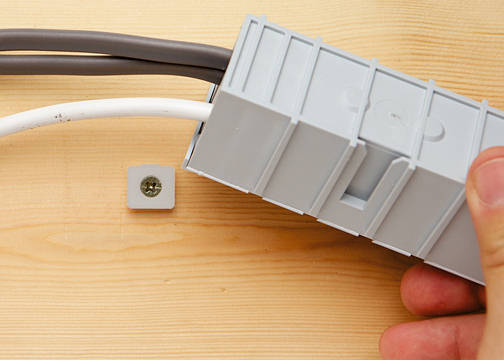

WA GOBOX
WA FB
See product for Accessories, Connectors and Fixing Screws
Wago 221Compact Series
Compact Lever Splicing Connector
6.00mm - 2, 3 & 5 conductor terminal block
Compact Lever Splicing Connector
6.00mm - 2, 3 & 5 conductor terminal block
COMPACT splicing connectors for all wire types;
2, 3 & 5 conductor terminal block; with operating levers;
Max. operating temperature 85°C
The WAGO 221 Series compact lever connector allows fast wiring for solid,
stranded & flexible conductors safely due to CAGE CLAMP connection
2, 3 & 5 conductor terminal block; with operating levers;
Max. operating temperature 85°C
The WAGO 221 Series compact lever connector allows fast wiring for solid,
stranded & flexible conductors safely due to CAGE CLAMP connection
| See product for Accessories, Connectors and Fixing Screws |
Technical:WA612C Data Sheet- 727kb pdf WA613C Data Sheet- 723kb pdf WA615C Data Sheet- 707kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
WAGO - PUSH WIRE® Inline Splicing Connector (max 4 mm²)
Loading …
Height: 6.15 mm / 0.242 inches.
Width: 6.8 mm / 0.268 inches.
Length: 29.5 mm / 1.161 inches.
WAGO
PUSH WIRE® Inline Splicing Connector (max 4 mm²)
PUSH WIRE® Inline Splicing Connector (max 4 mm²)
The plug-in through connector is the perfect product for connecting wires in the smallest of spaces.
There are many possible applications for plug-in through connectors, be it a wire that is too short in the flush mounting box to extend whole lines or repair damaged lines.
You can use the plug-in through connector to connect electrical wires easily, quickly and safely to the smallest possible space, and completely without the need for tools.
During repair, the connector can be used flush mounting thanks to maintenance-free spring technology with a suitable shrink hose and thus becomes a real problem solver and indispensable assistant.
Thanks to its short and compact design, several passage connectors can be arranged one after the other to save space.
There are many possible applications for plug-in through connectors, be it a wire that is too short in the flush mounting box to extend whole lines or repair damaged lines.
You can use the plug-in through connector to connect electrical wires easily, quickly and safely to the smallest possible space, and completely without the need for tools.
During repair, the connector can be used flush mounting thanks to maintenance-free spring technology with a suitable shrink hose and thus becomes a real problem solver and indispensable assistant.
Thanks to its short and compact design, several passage connectors can be arranged one after the other to save space.
-
Inline connection of
solid conductor 0.75 to 4 mm²,
stranded and fine-stranded conductors from 1.5 to 4 mm² - Slim design saves space in tight areas
- Tool-free connection and disconnection
- Use a mounting carrier for fixed and multi-pole wiring.
- Ratings per: EN 60664.
- Nominal voltage (II/2): 450V.
- Rated surge voltage (II/2): 4kV.
- Rated current: 32A.
Height: 6.15 mm / 0.242 inches.
Width: 6.8 mm / 0.268 inches.
Length: 29.5 mm / 1.161 inches.
Technical:WA2401 Datasheet pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Wago 221-2411 Compact Inline Lever Connector
Loading …
WA 2411
WA 2503
WA WBP
See product for Accessories
Wago 221-2411
Compact Inline Lever Connector
Compact Inline Lever Connector
Inline splicing connector with lever;
for all conductor types; max. 4 mm²; 2-conductor; transparent housing;
Transparent cover;
4mm²* / 32A - *max 2.5mm² conductor size when using 7-stranded conductors.
for all conductor types; max. 4 mm²; 2-conductor; transparent housing;
Transparent cover;
4mm²* / 32A - *max 2.5mm² conductor size when using 7-stranded conductors.
| See product for Accessories |
Technical:WA2503 Data Sheet- 351Kb pdf WAWBP Datasheet - 240kb pdf Instructions - 60kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|

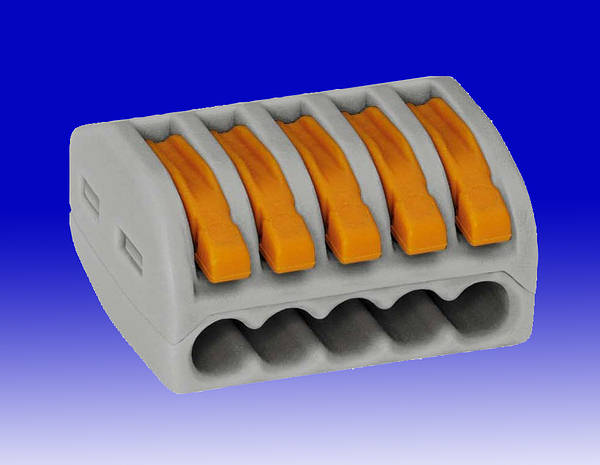

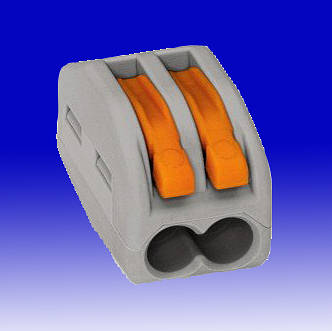

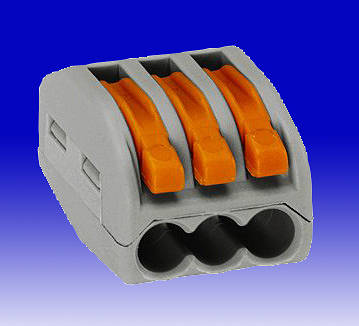

Wago 222 Series Lever Splicing Connectors
Loading …
WA 413
WA 412
WA 415
WA GOBOX
See product for Accessories, Connectors and Fixing Screws
Wago 222 Series Lever Splicing Connectors
max. continuous service temperature 85°c
The popular Series 222 commoning connector from WAGO is available in 2, 3 or 5 pole versions.
The beauty of the 222 series of connector is the simplicity and flexibility of connection.
The connector can accept Solid, Stranded and flexible conductors, no tools required.
Operating Instructions
Simply flip up the integrated orange lever to vertical position,
opening the CAGE CLAMP®, insert the stripped conductor, then return the lever to the horizontal position,
closing the CAGE CLAMP® to give a perfect gastight connection every time.
-
Applications
Low voltage lighting system
including Uplighters and downlighters - HVAC control circuit
- Junction boxes in wall or ceiling
- Mobile homes
-
Notes
Connectors should be used within a suitable enclosure.
but can be installed in a cavity when installing backless equipment, such as a domestic style luminaire, ( it is possible for the enclosure to be formed or completed by the fitting or suitable material considered to be non-combustible) - There is no requirement to secure the terminal blocks providing the cables are glanded or secured outside the enclosures with clips/saddles.
- IP20 protection on connectors.
- All WAGO connectors are re-usable.
- See each product
| See product for Accessories, Connectors and Fixing Screws |
Technical:See each product |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|

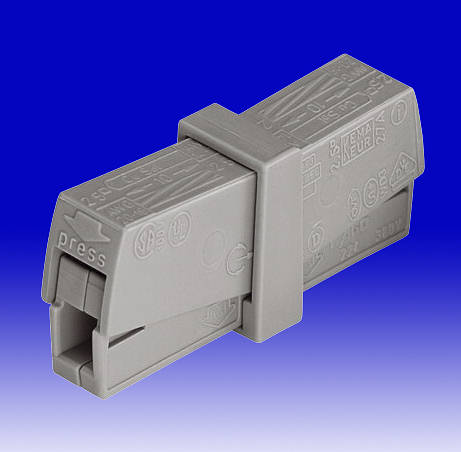

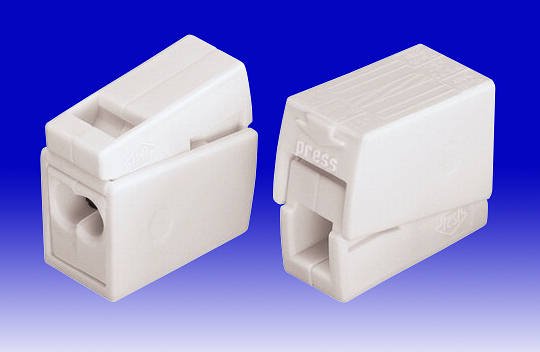

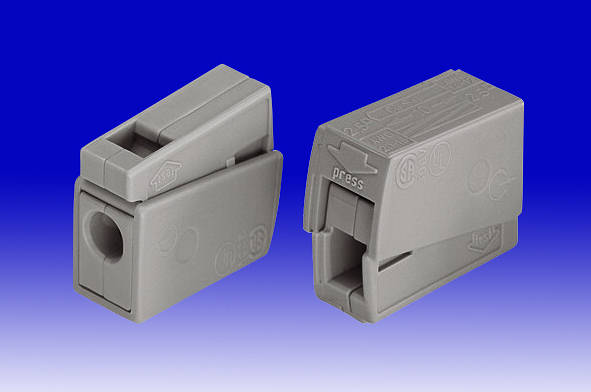

Wago 224 Series Lighting Connectors
Loading …
WA 101
WA 112
WA 201
WA GOBOXL
See product for Accessories
Wago 224 Series Lighting Connectors
Due to their testing and approval as isolated Compact Connectors per VDE 0606,
the lighting connectors of the Series 224 can be used in applications where a connection between solid and flexible conductors is required.
These connectors combine PushWire and CAGE CLAMP® technology, making them ideal for lighting applications.
There are three versions in the range, two with PushWire and CAGECLAMP® connection suitable for 1mm2 to 2.5mm2 solid conductors
and 0.5mm2 to 2.5mm2 solid, stranded and flexible conductors.
The third version has CAGE CLAMP® connection both sides,
accepting stripped solid, stranded and flexible conductors from 0.5mm2 to 2.5mm2.
There is a test point in the housing.
Operating Instructions
Simply strip the conductors 9 – 11mm, the solid conductor can be pushed directly into the connector.
The flexible conductor is inserted by compressing the terminal housing to open the CAGE CLAMP and the conductor can be inserted.
Once the pressure is released the connection is made.
The same method is used for releasing the flexible conductor and to release the solid conductor pull and twist
-
Applications
Wall lighting connections - Ceiling rose for pendant lighting
- Power & lighting connections on exhibition stand
- Extending and looping conductors
-
Notes
A ceiling rose can act as the enclosure for these connectors as long as conductors are secured. - Easy way of connecting flexible to flexible or solid to flexible conductors.
- Replace crimp and twist connections.
- All WAGO connectors are re-usable.
- See each product
| See product for Accessories |
Technical:See each product |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|

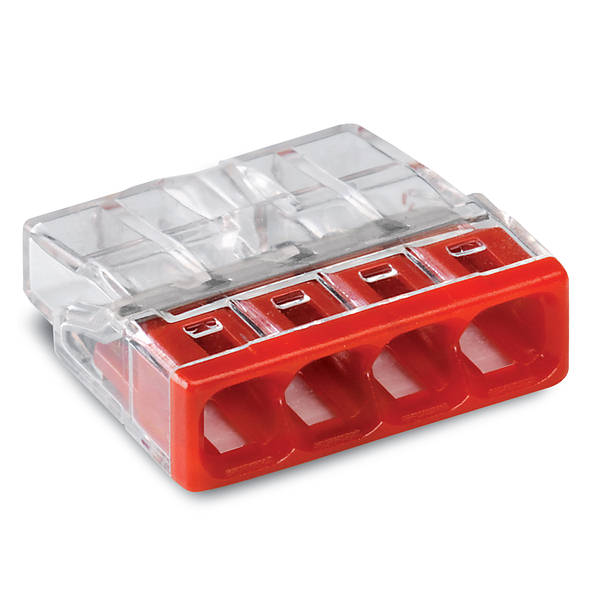

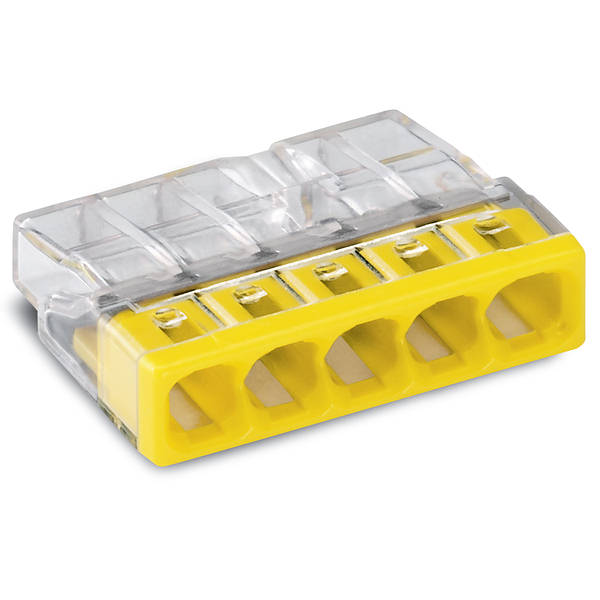

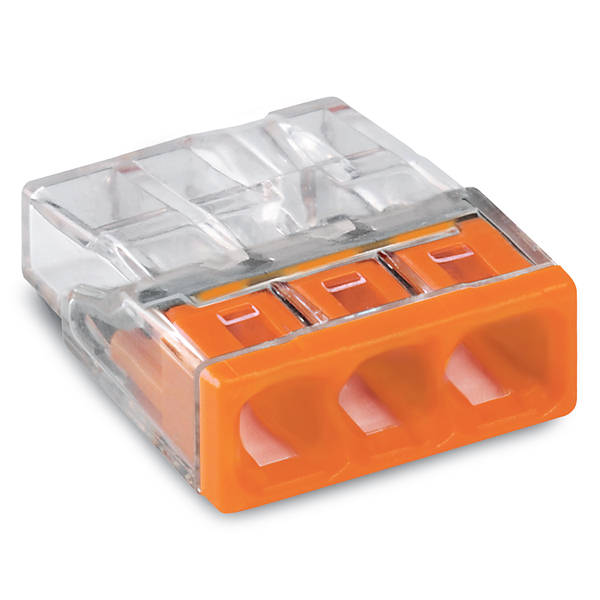

Wago 2273 Compact Transparent Push Wire Connector
Loading …
WA 202
WA 203
WA 204
WA 205
Wago 2273 Compact Transparent
Push Wire Connectors
0.5mm² - 2.5mm² Solid
Push Wire Connectors
0.5mm² - 2.5mm² Solid
COMPACT connector for junction boxes 2 conductor terminal blocks
Simply pushing the stripped conductor into the connector makes the connection. The transparent housing provides a visible indication that the conductor is secure.
There is a test point in the base of the housing.
To remove the connector simply pull on the conductor whilst twisting the connector block left and right.
The connector can then be reused.
Simply pushing the stripped conductor into the connector makes the connection. The transparent housing provides a visible indication that the conductor is secure.
There is a test point in the base of the housing.
To remove the connector simply pull on the conductor whilst twisting the connector block left and right.
The connector can then be reused.
Technical:Data Sheet- 850kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|

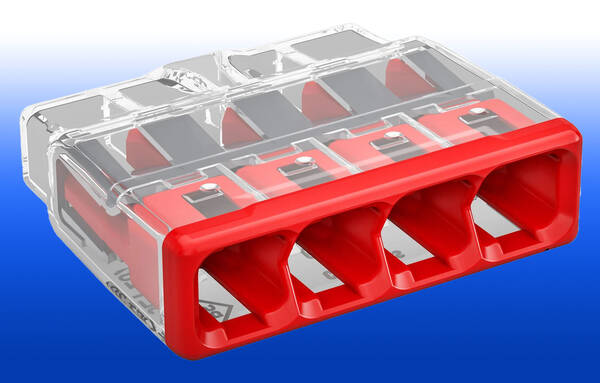

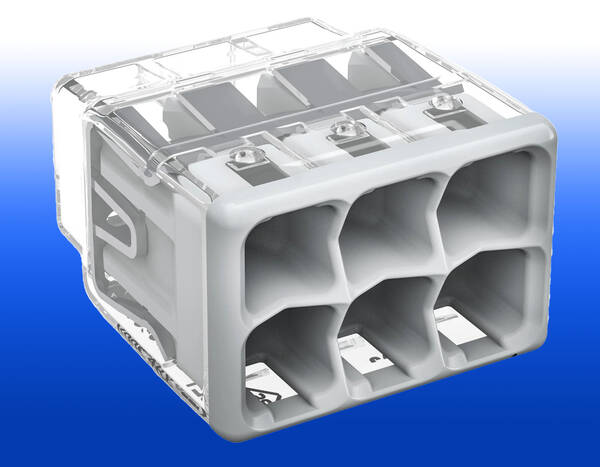

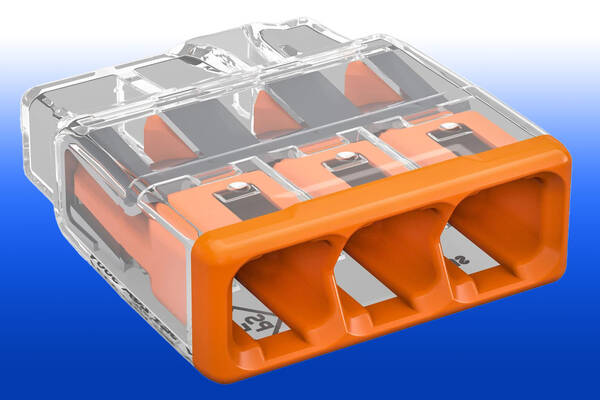

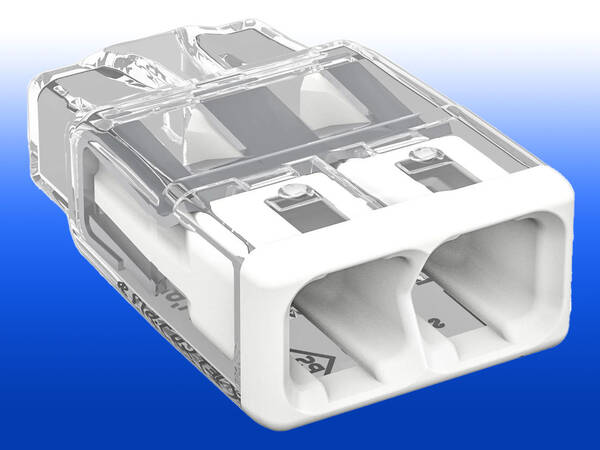

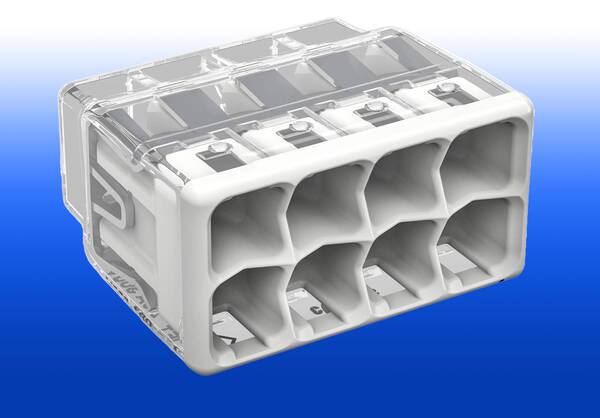

Wago 2773 Compact Transparent Push Wire Connector
Loading …
WA 402
WA 403
WA 404
WA 405
WA 406
WA 408
Wago 2773 Compact Transparent
Push Wire Connectors
0.75mm² - 4.0mm² Solid
1.5mm² - 4.0mm² Stranded
Push Wire Connectors
0.75mm² - 4.0mm² Solid
1.5mm² - 4.0mm² Stranded
COMPACT splicing connector with transparent housing for solid and stranded conductors.
Solid or stranded conductors are inserted into the connector by simply pushing them in.
The transparent housing provides a visible indication that the conductor is secure.
There is a test point located in the base of the housing. To remove the connector simply pull on the conductor whilst twisting the connector block alternatively left and right - the connector can then be reused.
Thanks to their flat and compact design, these connectors are ideal for wiring in flush-mount switch boxes.
Solid or stranded conductors are inserted into the connector by simply pushing them in.
The transparent housing provides a visible indication that the conductor is secure.
There is a test point located in the base of the housing. To remove the connector simply pull on the conductor whilst twisting the connector block alternatively left and right - the connector can then be reused.
Thanks to their flat and compact design, these connectors are ideal for wiring in flush-mount switch boxes.
- See each product
Technical:See each product |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|

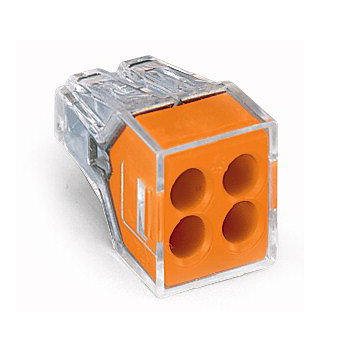

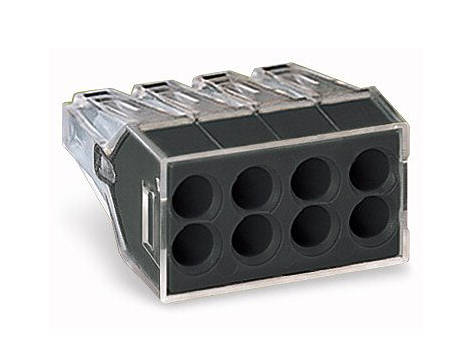

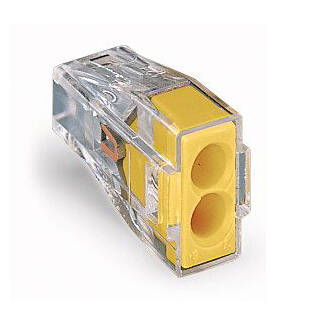

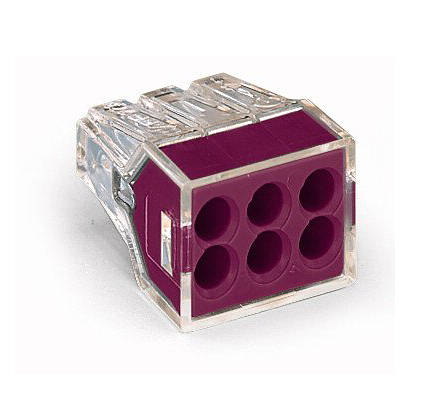

Wago 773 Series Push Wire Connectors
Loading …
WA 104
WA 104
WA 106
WA 108
See product for Accessories, Connectors and Fixing Screws
Wago 773 Series Push Wire Connectors
Available in 2, 4, 6 and 8 pole,
these colour coded connectors are suitable for 0.75mm2 to 2.5mm2 solid and 1.5mm2 to 2.5mm2 stranded conductors.
The new 3 pole version is suitable for solid and stranded conductors from 1.5mm2 to 6mm2.
Each of the connectors has a testing point in the housing.
A fixing carrier is available that is designed to secure the connectors into a junction box
or onto a DIN 35 Rail.
Operating Instructions
Simply strip the conductors 12mm, then push the conductor into the connector.
The transparent housing provides a visible indication that the conductor is secure.
The conductors can be removed by twisting and pulling the conductor at the same time.
-
Notes
Connectors should be used within a suitable enclosure.
but can be installed in a cavity when installing backless equipment, such as a domestic style luminaire, ( it is possible for the enclosure to be formed or completed by the fitting or suitable material considered to be non-combustible)
- There is no requirement to secure the terminal blocks providing the cables are glanded or secured outside the enclosures with clips/saddles.
- IP20 protection on connectors.
- All WAGO connectors are re-usable.
- See each product
| See product for Accessories, Connectors and Fixing Screws |
Technical:See each product |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|

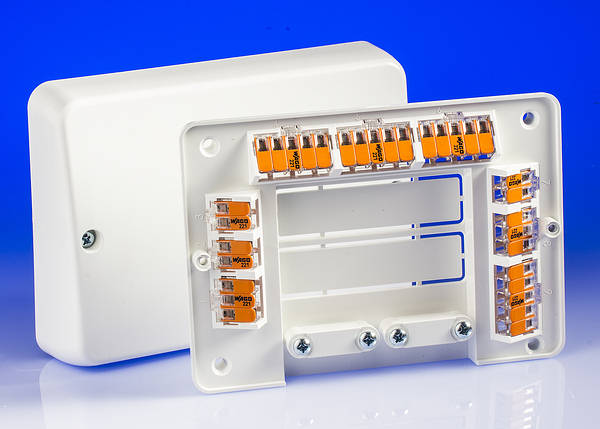

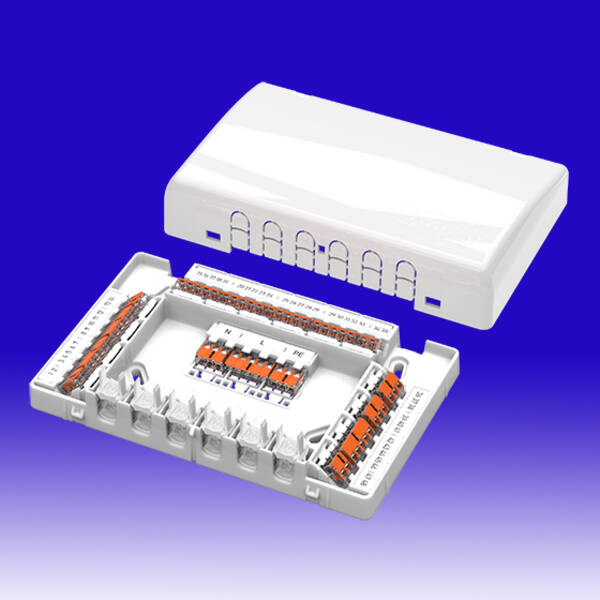

WAGOBOX Junction Boxes
Loading …
WA GOBOX
WA GOBOXL
WA GOBOXXL
WA WBP
See product for Accessories and Connectors
WAGOBOX® Junction Boxes
WAGOBOX® junction boxes, designed to house multiple connections utilising Wago connectors.
- See each product
| See product for Accessories and Connectors |
Technical:See each product |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Quickfix Junction Boxes
Loading …
QF JB3
QF JB4
QF JB32
QF JBU
See product for Accessories
| See product for Accessories |
Technical:QFJB Datasheet 8.5mb |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Wago Connector Kits
Loading …

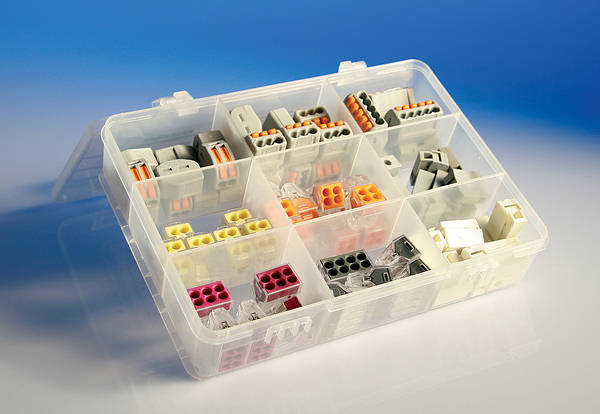

WA BB75

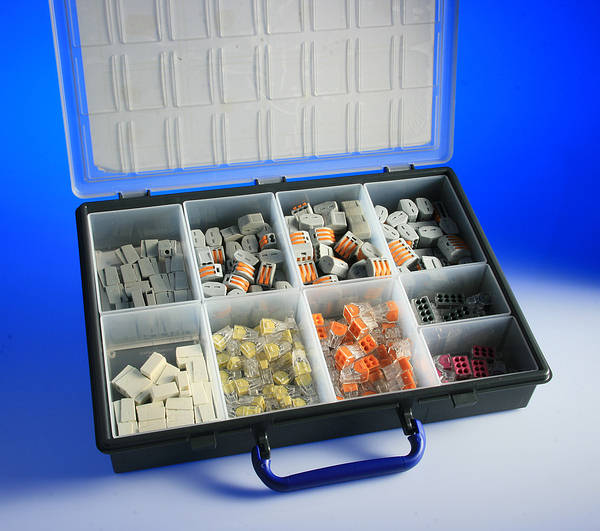

WA BP240

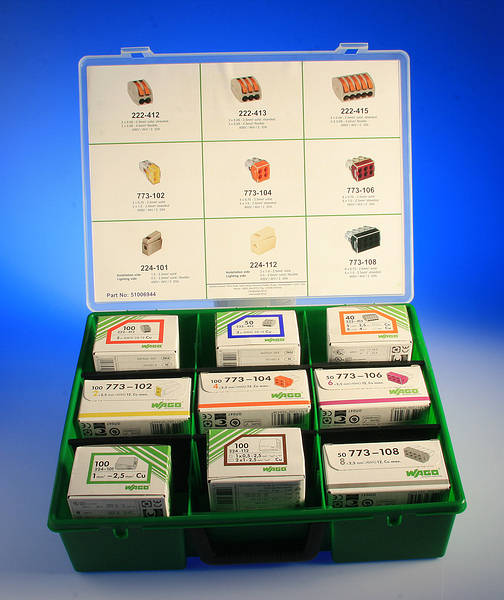

WA CC690
Wago Connector Kits
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Wago L32 Wiring Centre
Loading …
WA L32
Wago
L32 Wiring Centre
L32 Wiring Centre
The WAGO Box L32 Wiring Centre
with 221 series compact lever connector
Features
221 Series Compact Lever Connector
221 series allow up to 4mm², 25A / 450V.
221 connectors are pre-mounted and ready to use.
with 221 series compact lever connector
Features
221 Series Compact Lever Connector
221 series allow up to 4mm², 25A / 450V.
221 connectors are pre-mounted and ready to use.
Technical:L32 Data Sheet- 860kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Wago L60 Wiring Center - Less Connectors
Loading …
Shown fitted with WAGO connectors
Connectors NOT included
See product for Accessories
Wago
L60 Wiring Center - Less Connectors
L60 Wiring Center - Less Connectors
Junction box; for multicore cables
Use with Wago 221 series 4mm Connectors
Use with Wago 221 series 4mm Connectors
- Simple, quick and safe connection of up to 60 conductors
- A clear, structured arrangement that’s secured on one level
- Clearly visible labeling of each individual clamping unit
- Accessories set; Strain relief & marking; for junction box (Included)
- IP20
| See product for Accessories |
Technical:L60 Data Sheet- 1.1b pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
